X‑200 IRT compact design
The SCALANCE X‑200 IRT switches in compact design are intended for installation in control cabinets (exception: switches of the PRO type for use outside). Each of them has 4 Fast Ethernet ports in the following design:
- SCALANCE X204 IRT
- 4 electrical RJ45 ports (10/100BaseTX) for connecting IE FC cables via IE FC RJ45 Plug 180 up to 100 m
- SCALANCE X204 IRT PRO
- 4 electrical push-pull RJ45 ports (10/100BaseTX) for connecting IE FC cables via IE FC RJ45 Plug PRO up to 100 m
- SCALANCE X202‑2 IRT
- 2 electrical RJ45 ports (10/100BaseTX) for connecting IE FC cables via IE FC RJ45 Plug 180 up to 100 m
- 2 optical BFOC ports (100BaseFX) for the connection of glass multi-mode FOC up to 5 km
- SCALANCE X202‑2P IRT
- 2 electrical RJ45 ports (10/100BaseTX) for connecting IE FC cables via IE FC RJ45 Plug 180 up to 100 m
- 2 optical SC RJ ports (100BaseFX) for the connection of Ethernet POF FOC (up to 50 m) and PCF FOC (up to 100 m) using SC RJ plug connectors
- SCALANCE X202-2P IRT PRO
- 2 electrical push-pull RJ45 ports (10/100BaseTX) for connecting IE FC cables via IE FC RJ45 Plug PRO up to 100 m
- 2 optical push-pull SC RJ ports (100BaseFX) for the connection of Ethernet POF FOC (up to 50 m) and PCF FOC (up to 100 m) using SC RJ Plug PRO connectors
- SCALANCE X201‑3P IRT
- 1 electrical RJ45 port (10/100BaseTX) for connecting IE FC cables via IE FC RJ45 Plug 180 up to 100 m
- 3 optical SC RJ ports (100BaseFX) for the connection of Ethernet POF FOC (up to 50 m) and PCF FOC (up to 100 m) using SC RJ plug connectors
- SCALANCE X200‑4P IRT
- 4 optical SC RJ ports (100BaseFX) for the connection of Ethernet POF FOC (up to 50 m) and PCF FOC (up to 100 m) using SC RJ plug connectors

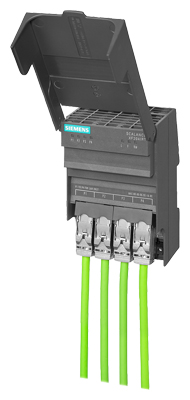

Flat design XF‑200 IRT
The XF 204 IRT switch in flat design is intended for use in the control cabinet. It has 4 electrical Fast Ethernet ports:
- SCALANCE XF204-2
- 4 electrical RJ45 ports (10/100BaseTX) for connecting IE FC cables via IE FC RJ45 Plug 180 up to 100 m
Summary of interfaces
|
Module type |
Type and number of ports |
||||
|---|---|---|---|---|---|
|
Fast Ethernet 100 Mbit/s |
|||||
|
Electrical (TP) |
Optical (FO) |
||||
|
RJ45 |
RJ45 push-pull |
Plastic FO: (POF/PCF) |
Glass fiber-optic cable |
||
|
SC RJ |
SC RJ push-pull |
BFOC (ST socket) |
|||
|
X200-4P IRT |
– |
– |
4 |
– |
– |
|
X201-3P IRT |
1 |
– |
3 |
– |
– |
|
X202-2 IRT |
2 |
– |
– |
– |
2 (multimode) |
|
X202-2P IRT |
2 |
– |
2 |
– |
– |
|
X202-2P IRT PRO |
– |
2 |
– |
2 |
– |
|
X204 IRT |
4 |
– |
– |
– |
– |
|
X204 IRT PRO |
– |
4 |
– |
– |
– |
|
XF204 IRT |
4 |
– |
– |
– |
– |
When configuring the network, it is necessary to observe the following boundary conditions:
- Length of the TP cable between two SCALANCE X switches:
- Max. 100 m with IE FC cable and IE FC RJ45 plug 180 or IE FC RJ45 Plug PRO
- Max. 10 m with TP cord
- Length of the optical cables
- Max. 4 000 m with Industrial Ethernet glass FOC (62.5/125 µm)
- Max. 5 000 m with Industrial Ethernet glass FOC (50/125 µm)
- Max. 100 m with Industrial Ethernet PCF FOC
- Max. 50 m with Industrial Ethernet POF FOC
Features of the X-200 IRT compact design
- Rugged metal enclosure of S7‑300 format, IP30 degree of protection, for installation in control cabinets
- Mounting possibilities: Standard DIN rail, SIMATIC S7‑300 mounting rail, direct wall mounting
- PROFINET-compliant connection technology; electrical: RJ45, optical: SC RJ for POF/PCF FOC or BFOC (ST socket) for glass multi-mode FOC (information about plug-in connectors and cable material see section "Passive network components" in this catalog or subsection "Cabling systems" in the section on PROFINET/Industrial Ethernet of the catalog IK PI)
- Strain relief and bending strain relief by latching the PROFINET-compliant plug-in connector on the housing
- Integrated redundancy manager for ring structures
- Integral standby function for redundant coupling of two rings
- Redundant 24V DC power supply via 4-pin terminal block
- Device diagnostics by means of LEDs (power, port status, data communication, signaling contact, redundancy manager function)
- The permissible ambient temperature during operation varies depending on the device type:
- -40 to +70 °C (X204 IRT)
- -40 to +60 °C (X202-2 IRT)
- -25 to +60 °C (X202-2P IRT)
- -25 to +50 °C (X201-3P IRT)
- -25 to +40 °C (X200-4P IRT)
Differentiating features of the switches of the PRO type
- Rugged housing in S7-300 format, IP65/67 degree of protection, for mounting outside the control cabinet
- PROFINET-compliant push-pull connection technology; electrical: RJ45 push-pull, optical: SC RJ push-pull (information about plug-in connectors and cable material see subsection "Cabling systems" in the section on PROFINET/Industrial Ethernet of the catalog IK PI)
- 24V DC infeed via two 5‑pin push-pull connectors for feeding and forwarding (no redundancy)
- The permissible ambient temperature during operation varies depending on the device type:
- -25 to +70 °C (X204 IRT PRO)
- -25 to +60 °C (X202 2P IRT PRO)
Features of the XF‑200 IRT flat design
- Flat enclosure in ET 200S format, IP20 degree of protection, for installation in control cabinets or small control boxes
- Can be mounted on a standard DIN rail
- Strain relief and bending strain relief by latching the PROFINET-compliant RJ45 plug-in connector on the housing
- PROFINET-compliant connection technology; electrical: RJ45 (information on plug-in connectors and cable material see section "Passive network components" in this catalog or subsection "Cabling systems" in the section on PROFINET/Industrial Ethernet of the catalog IK PI)
- Redundant 24V DC power supply via 4-pin terminal block
- Device diagnostics by means of LEDs (power, port status, data communication, signaling contact, redundancy manager function)
- Permissible ambient temperature during operation: ‑40 to +60 °C
