Compact design X-300, standard version
Fast Ethernet and Gigabit Ethernet ports
- SCALANCE X310
- 3 electrical Gigabit Ethernet RJ45 ports (1000BaseTX)
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X308-2
- 2 optical Gigabit Ethernet SC ports for glass multi-mode FOC (1000BaseSX) up to 750 m
- 1 electrical Gigabit Ethernet RJ45 port (1000BaseTX)
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)

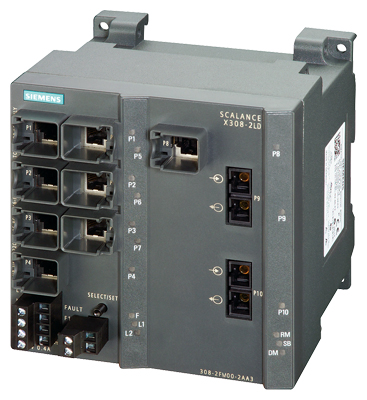

- SCALANCE X308-2LD
- 2 optical Gigabit Ethernet SC ports for glass single-mode FOC (1000BaseLX) up to 10 km
- 1 electrical Gigabit Ethernet RJ45 port (1000BaseTX)
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X308-2LH
- 2 optical Gigabit Ethernet SC ports for glass single-mode FOC (1000BaseLX) up to 40 km
- 1 electrical Gigabit Ethernet RJ45 port (1000BaseTX)
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X308-2LH+
- 2 optical Gigabit Ethernet SC ports for glass single-mode FOC (1000BaseLX) up to 70 km
- 1 electrical Gigabit Ethernet RJ45 port (1000BaseTX)
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X307-3
- 3 optical Gigabit Ethernet SC ports for glass multi-mode FOC (1000BaseSX) up to 750 m
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X307-3LD
- 3 optical Gigabit Ethernet SC ports for glass single-mode FOC (1000BaseLX) up to 10 km
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
Fast Ethernet ports
- SCALANCE X310FE
- 10 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X306-1LD FE
- 6 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- 1 optical Fast Ethernet SC port (100BaseFX) for glass single-mode FOC up to 26 km
- SCALANCE X320-1FE
- 20 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- 1 optical Fast Ethernet SC port (100BaseFX) for glass multi-mode FOC up to 5 km
- SCALANCE X320-3LD FE
- 20 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- 1 optical Fast Ethernet SC port (100BaseFX) for glass multi-mode FOC up to 5 km
- 2 optical Fast Ethernet SC ports (100BaseFX) for glass single-mode FOC up to 26 km
Compact design X-300, partially modular version
Gigabit Ethernet ports
- SCALANCE X308-2M
- 4 electrical Gigabit Ethernet RJ45 ports (1000BaseTX)
- 2 slots for 2-port media modules 10/100/1000 Mbit/s, electrical or optical

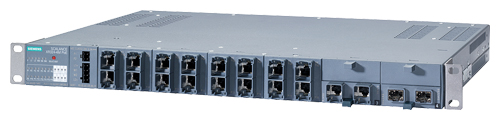

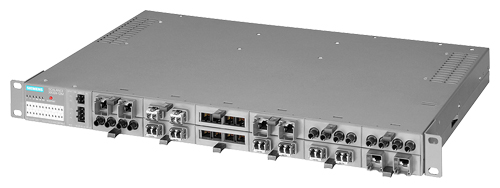

Rack design (modular) XR-300, standard version
The fully modular SCALANCE XR-300 standard basic device is equipped with 12 slots for 2‑port media modules (electrical or optical):
- SCALANCE XR324-12M (power supply connection and data cable outlet at front/back)
with power supply unit 1 x 24V DC or 1 x 110 to 230V AC- 12 slots for 2-port media modules 10/100/1000 Mbit/s, electrical or optical

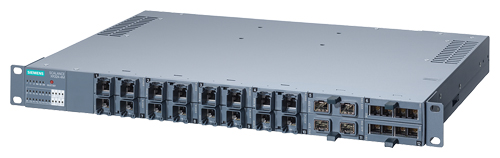

Rack design (modular) XR-300, PoE version
The partially modular SCALANCE XR-300 PoE basic device has 16 integrated electrical RJ45 ports (10/100/1000 Mbit/s), eight of which are PoE capable. In addition, it has four slots for expansion with 2‑port media modules (electrical or optical):
- SCALANCE XR324-4M PoE (power supply connection and data cable outlet at front/back)
with power supply unit 1 x 24V DC- 16 electrical Gigabit Ethernet RJ45 ports (1000BaseTX)
- 4 slots for 2-port media modules 10/100/1000 Mbit/s, electrical or optical
Rack design (modular) XR-300, EEC version
The partially modular SCALANCE XR-300 EEC basic device has 16 integrated electrical RJ45 ports (10/100/1000 Mbit/s), as well as four slots for 2‑port media modules (electrical or optical).
- SCALANCE XR324-4M EEC (data cable outlet at front/back)
with 24V DC power supply or 100 to 240V AC/60 to 250V DC, each single (1 x) or redundant (2 x)- 16 electrical Gigabit Ethernet RJ45 ports (1000BaseTX)
- 4 slots for 2-port media modules 10/100/1000 Mbit/s, electrical or optical
Summary of interfaces
|
Module type |
Integrated ports, type and number |
Number of media module ports (Port types, see table Overview of media modules) |
|||
|---|---|---|---|---|---|
|
Gigabit Ethernet 1000 Mbit/s |
Fast Ethernet 100 Mbit/s |
||||
|
Electrical (TP) |
Optical (FO) |
Electrical (TP) |
Optical (FO) |
||
|
RJ45 socket |
SC socket |
RJ45 socket |
SC socket |
||
|
X-300 compact design |
|||||
|
X320-1FE |
– |
– |
20 |
1 (multi-mode) for up to 5 km |
– |
|
X320-3LD FE |
– |
– |
20 |
1 (multi-mode) for up to 5 km |
– |
|
X310 |
3 |
– |
7 |
– |
– |
|
X310FE |
– |
– |
10 |
– |
– |
|
X308-2 |
1 |
2 (multi-mode) for up to 750 m |
7 |
– |
– |
|
X308-2LD |
1 |
2 (singlemode) for up to 10 km |
7 |
– |
– |
|
X308-2LH |
1 |
2 (singlemode) for up to 40 km |
7 |
– |
– |
|
X308-2LH+ |
1 |
2 (singlemode) for up to 70 km |
7 |
– |
– |
|
X307-3 |
– |
3 (multi-mode) for up to 750 m |
7 |
– |
– |
|
X307-3LD |
– |
3 (singlemode) for up to 10 km |
7 |
– |
– |
|
X-306-1LD FE |
– |
– |
6 |
1 (singlemode) for up to 26 km |
– |
|
X-308-2M |
4 |
– |
– |
– |
4 (2 x 2) |
|
Rack design XR-300 |
|||||
|
XR324-12M |
– |
– |
– |
– |
24 (12 x 2) |
|
XR324-4M PoE |
16 (including 8 PoE) |
– |
– |
– |
8 (4 x 2) |
|
XR324-4M EEC |
16 |
– |
– |
– |
8 (4 x 2) |
Network configuration
When configuring the network, it is necessary to observe the following boundary conditions:
Network configuration X-300 compact design
- Maximum line length between two modules for multi-mode fiber-optic conductors:
- 5 km at 100 Mbit/s
- 750 m at 1 Gbit/s
- Maximum line length between two modules for single-mode fiber-optic conductors:
- 26 km at 100 Mbit/s
- 10 to 70 km at 1 Gbit/s
- Maximum cable length of the TP cable between two SCALANCE X switches:
- Max. 100 m with IE FC cable 2x2 and IE FC RJ45 Plug 180
- Max. 100 m at 1 Gbit/s with IE FC Standard Cable 4x2 (90 m), IE FC RJ45 Modular Outlet and patch cable (10 m)
- Max. 10 m using patches with TP cord
Network configuration rack design XR-300
- Maximum line length between two modules for multi-mode fiber-optic conductors:
- 5 km at 100 Mbit/s
- 750 m at 1 Gbit/s
- Maximum line length between two modules for single-mode fiber-optic conductors:
- 26 km to 70 km at 100 Mbit/s
- 10 to 120 km at 1 Gbit/s
- Maximum cable length of the TP cable between two SCALANCE X switches:
- Max. 100 m with IE FC cable 2x2 and IE FC RJ45 Plug 180
- Max. 100 m at 1 Gbit/s with IE FC Standard Cable 4x2 (90 m), IE FC RJ45 Modular Outlet and patch cable (10 m)
- Max. 10 m using patches with TP cord
Features of the X-300 compact design
- Rugged metal enclosure of S7‑300 format, IP30 degree of protection, for installation in control cabinets
- Mounting possibilities: DIN rail, SIMATIC S7‑300 mounting rail, direct wall mounting
- Redundant 24V DC power supply via 4-pin terminal block
- Connection of the floating signaling contact via 2‑pin terminal block
- Device diagnostics by means of LEDs (power, port status and operating mode, supply voltage, signaling contact status, feedback mask specified condition, redundancy manager function, standby manager function)
- Cable length between two devices with electrical transmission per TP ports 10/100BaseTX with RJ45 sockets (automatic detection of data rate):
- Up to 100 m with IE FC cable and IE FC RJ45 plugs (see section "Passive network components" in this catalog or section "Cabling technology" in the section PROFINET/Industrial Ethernet of the catalog IK PI)
- Up to 10 m with TP cord (see section "Passive network components" in catalog IK PI)
- Cable length between two devices with electrical transmission via TP ports 1000BaseTX with RJ45 sockets (automatic detection of the data rate (10, 100 or 1000 Mbit/s), in accordance with cable type (see section "Passive network components" in this catalog or section "Cabling technology" in the section PROFINET/Industrial Ethernet of the catalog IK PI):
- Up to 100 m via IE FC cables 2x2 for 100 Mbit/s with IE FC RJ45 Plug 180
- Up to 100 m via IE FC cables 4x2 for 1000 Mbit/s with IE FC RJ45 modular outlet and patch cable TP cord
- Up to 100 m via IE FC cables 4x2 for 1000 Mbit/s with IE FC RJ45 Plug 4x2
- Cable length between two devices with optical transmission:
- Up to 750 m via 1000BaseSX ports (1 000 Mbit/s) and Industrial Ethernet glass multi-mode FOC (see section "Passive network components" in this catalog or subsection "Cabling technology" in the PROFINET/Industrial Ethernet section of the IK PI catalog)
- Up to 10 km via 1000BaseLX ports (1 000 Mbit/s) and Industrial Ethernet glass single-mode FOC (see section "Cabling technology" in the section PROFINET/Industrial Ethernet of the IK PI catalog)
- Up to 40 km via 1000BaseLX ports (1 000 Mbit/s) and Industrial Ethernet glass single-mode FOC (see section "Cabling technology" in the section PROFINET/Industrial Ethernet of the IK PI catalog)
- Up to 70 km via 1000BaseLX ports (1 000 Mbit/s) and Industrial Ethernet glass single-mode FOC (see section "Cabling technology" in the section PROFINET/Industrial Ethernet of the IK PI catalog)
- Switches identified LH/LH+ allow very large optical Gigabit rings:
- Network ranges up to 2 000 km (ring with max. 50 X308-2LH) or 3 500 km (ring with max. 50 X308-2LH+)
- Redundant ring coupling (standby redundancy) up to 40 km (X308-2LH) or 70 km (X-308-2LH+)
- Integrated redundancy manager for ring structures
- Integral standby function for redundant coupling of two rings
- The permissible ambient temperature during operation varies as follows:
- -40 to +70 °C (X308-2M)
- -10 to +60 °C (X308-2, X307-3)
- -40 to +60 °C (X310, X310 FE, X308‑2LD, X308‑2LH, X308‑2LH+, X307‑3LD, X306‑1LD FE, X320‑1FE, X320‑3LD FE)
Features of the XR-300 rack design

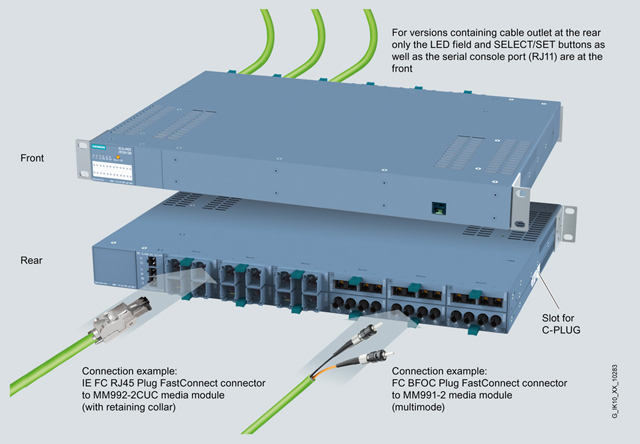

SCALANCE XR-300 with cable outlet at rear
Standard version
- Modular switch in a rugged metal enclosure, IP20 degree of protection, optimized for installation in 19" cabinets
- Up to 24 electrical and/or optical interfaces (10/100/1000 Mbit/s) in the form of up to 12 electrical and/or optical 2-port media modules (assignment of the basic device freely selectable)
- Outgoing feeder of the data cable on the front or rear
- Power supply unit in single design (1 x 24V DC or 1 x 110 to 230V AC)
- Redundant 24V DC power supply via 4-pin terminal block
- Infeed with 230V AC via 3-pin terminal block
- Connection of the floating signaling contact via 2‑pin terminal block
- SELECT/SET pushbutton for easy setting of the fault signaling contact on the device
- Device diagnostics by means of LEDs (power, port status and operating mode, supply voltage, signaling contact status, feedback mask specified condition, redundancy manager function, standby manager function)
- Console port (serial interface) for on-site configuration/diagnostics (RJ11 cable to RS232, 9-pin, included in product package)
- 12 slots for electrical or optical 2‑port media modules for multi-mode or single-mode connections; optical media modules in various connection systems
- Gigabit Ethernet (1000 Mbit/s) on all 24 ports; structure the ports in three groups of eight ports each (Gigabit Ethernet Blocking); Gigabit Ethernet full wire speed within a group
- All electrical Ethernet interfaces support 10/100/1000 Mbit/s, all optical Ethernet interfaces support 100 or 1000 Mbit/s
- Integrated redundancy manager for ring structures
- Integral standby function for redundant coupling of two rings
- Permissible ambient temperature during operation ‑40 to +70 °C
PoE version
- Modular switch in a rugged metal enclosure, IP20 degree of protection, optimized for installation in 19" cabinets
- Up to 24 electrical and/or optical interfaces (10/100/1000 Mbit/s) in the form of
- 16 integrated RJ45 ports, eight of which are PoE capable
- Up to four electrical and/or optical 2-port media modules
- Outgoing feeder of the data cable on the front or rear
- Power supply unit in single design (24V DC)
- Redundant 24V DC power supply via 4-pin terminal block
- Connection of the floating signaling contact via 2‑pin terminal block
- SELECT/SET pushbutton for easy setting of the fault signaling contact on the device
- Device diagnostics by means of LEDs (power, port status, data communication, supply voltage, signaling contact)
- Console port (serial interface) for on-site configuration/diagnostics (RJ11 cable to RS232, 9-pin, included in product package)
- 4 slots for electrical or optical 2‑port media modules for multi-mode or single-mode connections; optical media modules in various connection systems
- Gigabit Ethernet (1000 Mbit/s) on all 24 ports; structure the ports in three groups of eight ports each (Gigabit Ethernet Blocking); Gigabit Ethernet full wire speed within a group
- All electrical Ethernet interfaces support 10/100/1000 Mbit/s, all optical Ethernet interfaces support 100 or 1000 Mbit/s
- Integrated redundancy manager for ring structures
- Integral standby function for redundant coupling of two rings
- Permissible ambient temperature during operation ‑40 to +60 °C
EEC version
- Modular switch in a rugged metal enclosure, IP20 degree of protection, optimized for installation in 19" cabinets
- Up to 24 electrical and/or optical interfaces (10/100/1000 Mbit/s) in the form of
- 16 integrated RJ45 ports
- Up to four electrical and/or optical 2-port media modules
- Outgoing feeder of the data cable on the front or rear
- Power supply unit in single (1 x 24V DC or 1 x 100 to 240V AC/60 to 250V DC) or redundant version (2 x 24V DC or 2 x 100 to 240V AC/60 to 250V DC)
- Redundant 24V DC power supply via 4-pin terminal block
- Infeed with 230V AC via 3-pin terminal block
- Connection of the floating signaling contact via 2‑pin terminal block
- SELECT/SET pushbutton for easy setting of the fault signaling contact on the device
- Device diagnostics by means of LEDs (power, port status, data communication, supply voltage, signaling contact)
- Console port (serial interface) for on-site configuration/diagnostics (RJ11 cable to RS232, 9-pin, included in product package)
- 4 slots for electrical or optical 2‑port media modules for multi-mode or single-mode connections; optical media modules in various connection systems
- Gigabit Ethernet (1000 Mbit/s) on all 24 ports; structure the ports in three groups of eight ports each (Gigabit Ethernet Blocking); Gigabit Ethernet full wire speed within a group
- All electrical Ethernet interfaces support 10/100/1000 Mbit/s, all optical Ethernet interfaces support 100 or 1000 Mbit/s
- Integrated redundancy manager for ring structures
- Integral standby function for redundant coupling of two rings
- Permissible ambient temperature during operation ‑40 to +70 °C

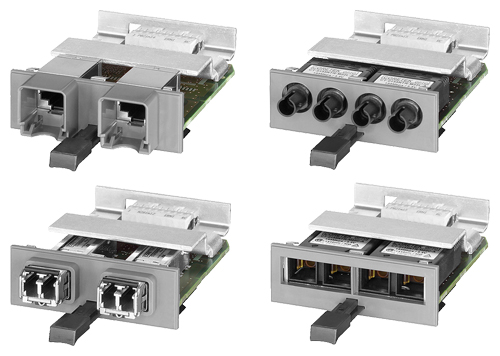

Media modules for SCALANCE X-300/XR-300

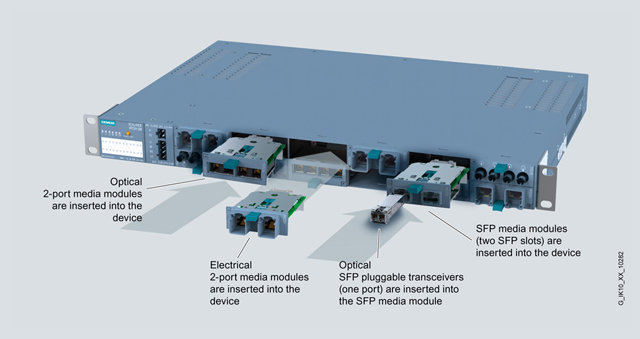

The use of 2-port media modules (electrical or optical) lets you:
- Expand the network by subsequent installation of additional media modules in free media module slots
- Change the cabling technology (e.g. conversion from copper to fiber-optic cables, or from multi-mode to single-mode FOC)
Product versions of media modules

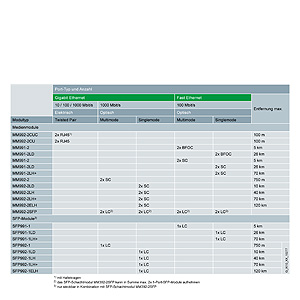

Overview of media modules for SCALANCE X-300
Electrical media modules with 2 x 10/100/1000 Mbit/s RJ45 ports
- MM992-2CUC with retaining sleeve
- MM992-2CU without retaining sleeve
Optical media modules with 2 x 100 Mbit/s BFOC ports
- MM991-2
multi-mode, glass, up to 5 km - MM991-2LD
single-mode, glass, up to 26 km
Optical media modules with 2 x 100 Mbit/s SC ports
- MM991-2
multi-mode, glass, up to 5 km - MM991-2LD
single-mode, glass, up to 26 km - MM991-2LH+
single-mode, glass, up to 70 km
Optical media modules with 2 x 1000 Mbit/s SC ports
- MM992-2
multi-mode, glass, up to 750 m - MM992-2LD
single-mode, glass, up to 10 km - MM992-2LH
single-mode, glass, up to 40 km - MM992-2LH+
single-mode, glass, up to 70 km - MM992-2ELH
single-mode, glass, up to 120 km
Optical media modules with 2 x 100/1000 Mbit/s for SFP pluggable transceiver
- MM992-2SFP
for SFP plug-in transceivers with 1 x 100 Mbit/s or 1 x 1000 Mbit/s multi-mode or single-mode, glass
SFP plug-in transceiver for MM992-2SFP media module
The following SFP plug-in transceivers (Small Form-factor Pluggable) can only be used together with the SFP media module MM992-2SFP.
Optical SFP pluggable transceivers with 1 x 100 Mbit/s LC port
- SFP991-1
multi-mode, glass, up to 5 km - SFP991-1LD
single-mode, glass, up to 26 km - SFP991-1LH+
single-mode, glass, up to 70 km
Optical SFP pluggable transceivers with 1 x 1000 Mbit/s LC port
- SFP992-1
multi-mode, glass, up to 750 m - SFP992-1LD
single-mode, glass, up to 10 km - SFP992-1LH
single-mode, glass, up to 40 km - SFP992-1LH+
single-mode, glass, up to 70 km - SFP992-1ELH
single-mode, glass, up to 120 km
