- Cabinet depth of 210 mm
- Safety class 2 (total insulation)

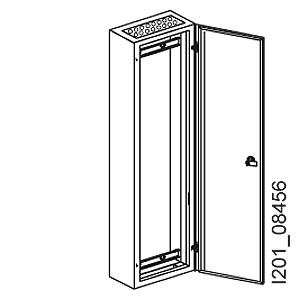

- Enclosure with door1) and rotary handle, which can be replaced by other locking systems
- Surface-mounting distribution boards, degree of protection, IP43
- Unequipped distribution board or flat pack²)
- Color: RAL 9016 (traffic white)
- One 1-component flange per section width on incoming side
- One 2-component flange per section width on outgoing side
- Surface-mounting distribution boards, degree of protection, IP55
- Color: RAL 9016 (traffic white)
- One 2-component flange per section width on ingoing/outgoing side respectively
- Flush-mounting distribution boards, degree of protection, IP31D
- Color: RAL 9016 (traffic white)
- One 2-component flange per section width on ingoing/outgoing side respectively
- Without wall-recessed box
1) Boards with a width of 750 mm/800 mm or more are supplied with a double door.
2) Cabinet assembly kit, for self-assembly
