Применение
Внешнее освещение
- Жилые территории
- Стадионы
- Спортивные площадки
Systems in general
- Installation in damp locations
- Potential-free switching
- Call systems in catering premises
Electronic games
- Радио, ТВ
- Screens
- Sound studio applications
- Multimedia shows
- Rotor aerial
- Lecture rooms
Customized IR remote controls
- Configuration of IR controls according to customer requirements
- Все виды медицинского оборудования
Control systems
- General motor controls (fans, shutters/blinds, curtains, gates, skylights)
- Lifting platforms
Проымышленные системы управления
- Automotive electronics
- Лифты, traveling trolleys
- Test bays
- Crane systems
- Mechanical engineering
- Loading equipment
Leisure activities and hobbies
- Игрушки
- Спортивный инвентарь (automatic shooting ranges, ball throwing machines)
- Бассейны (освещение, cover)
Modern infrared technology offers a wide range of applications as well as ease of operation, security and lower costs during installation. Not only do they enhance and change well-known technologies, they also offer greater warmth, flexibility and comfort in the workplace. The modular design and the handling of the system is uncomplicated and offers maximum insensitivity to interference during transmission of the control signals through infrared light.
The IR-64K infrared remote control system uses this technology. The system offers a broad spectrum of device combinations and expansion options for a whole range of applications. The IR-64K system is a module and device system for all kinds of remote control based on infrared technology with ranges of up to 50 m. There are none of the usual interferences, thanks to the high propagation rate. The 9-bit pulse code modulation (PCM) used in the IR-64K system has an extremely high interference immunity against other remote control systems, such as ultrasonic or radio.
The IR-64K system covers the entire range of IR applications. The product range comprises hand-held transmitters that can be encoded with up to 64 channels, receiver preamplifiers, decoders, circuit-breakers with 4/8 outputs and corresponding power supply units. The range is rounded off with compact systems with up to 64 switching functions. The modules enable problem-free setup of remote controls for simple switching functions through to complex applications. The modules are suitable for installation in devices and systems, for external mounting and as device accessories.
The system devices and modules have the BZT registration number G105 376C/IW.
Combination options
The components can be used in any combination, your choice depends largely on the type of application and local conditions.
Ручные передатчики
The hand-held transmitters vary in design, number of pushbuttons and the type of command encoding.

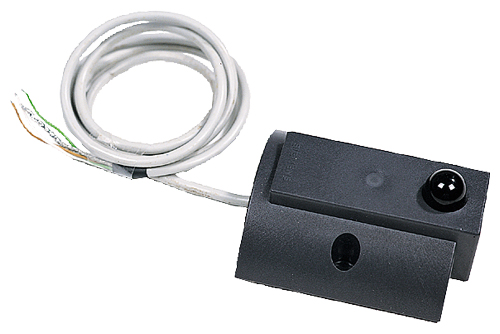

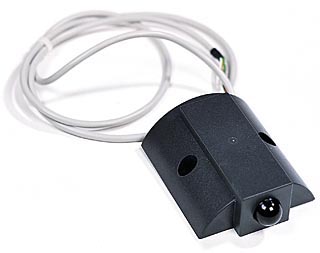

Ресиверы-предусилители
The receiver preamplifiers can be operated on all decoders and compact systems of the IR-64K system. In order to ensure selection of the correct preamplifier, it is important to take the reception, installation, operating and environmental conditions into consideration.

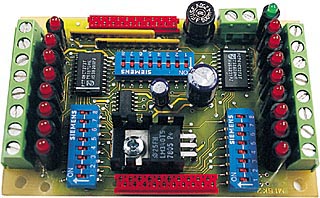

Decoders
The decoders vary in design, number of receiver preamplifier inputs, type of signal outputs and operating voltage. All modules can be encoded using the DIL switch.
Further expansion modules are also available which allow extension of the system to up to 64 channels.
Power electronics assemblies
To increase the switching capacity at the outputs of the decoder and the expansion module, a range of power electronics assemblies are available, which vary in their switching capacity, number of outputs and operating voltage.
Compact systems
In the compact systems, all key components are combined in a single casing and on a single module. They comprise decoders, power supply units and power outputs with potential-free changeover contacts.
Power supply units
The modules are powered by the power supply units. They supply a controlled voltage of 12 V at a load of 500 mA or 1.0 A.
