Dimensions

Width / length / width (NS 35/7.5) in mm

6,2 /56 / 62,5

Max. electrical Data

Imax in A

6,3¹⁾

Umax in V

500

max. O in mm2

0,2 ... 6

AWG

24-10

Rated data acc. to IEC 60947-7-1

Rated voltage in V (IEC / UL/CSA)

500 / 300

Rated current in A / cross-section in mm

IEC

6,3/ 1

UL/CSA

6,3 / --

Rated cross-section in mm

4

Cross-section range AWG (IEC / UL/CSA)

24-10 / 24-10

Connection capacity

1-wire

rigid in mm

0,2 ... 6

flexible in mm

0,2 ... 4

End sleeve without/with plastic sleeve in mm

0,25 ... 4

Conductor cross-sections can be plugged in directly

rigid in mm

0,5 ... 6

End sleeve without/with plastic sleeve in mm

0,5 ... 4

General data

Stripped length in mm

12

Molded plastic

PA

Flammability category acc. to UL 94

V0

Terminal size 4 mm

8WH6 000-1GG08

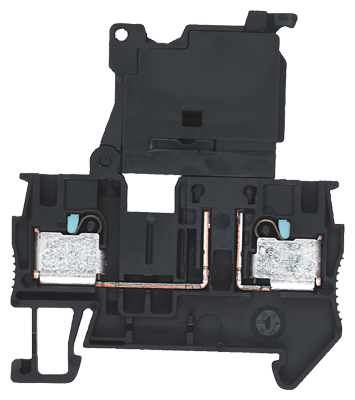

Fuse terminal, terminal size 4 mm , for G fuse links 5 x 20 mm

• C^RUUS,
  CSA
• Terminal width 6.2 mm
• Imax = 6.3 A
• Umax = 500 V
• AWG 24-10
• Connection capacity, one conductor
• Rigid 0.2 ... 4 mm
• Flexible 0.2 ... 4 mm
• Black

Versions

• Without LED

8WH6 000-1GG08

• with LED 10 ... 30 V AC/DC

8WH6 000-1KG38

• with LED 110 ... 250 V AC/DC

8WH6 000-1MG88

Accessories

Section

• Cover, for terminal size 4 mm

• For two connection points

Accessories

8WH9 003-1GA00
