Pt500 temperature sensor pair (EN 1434) |
|
Cable length |
2, 3, 5 or 10 m (’C’ at the dimensional drawing) |

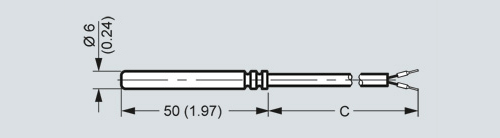

Pt 500 2-wire temperature sensor, dimensions in mm (inch)
Pt500 4-wire temperature sensor pair (with MID and PTB K7.2 approval)

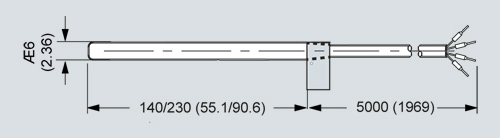

Pt500 4-wire temperature sensor, dimensions in mm (inch)
Stainless steel sensor pocket (for 2-wire Pt500 types only) |
|||||
---|---|---|---|---|---|
Length |
L1 (mm) |
92 |
127 |
168 |
223 |
L (mm) |
82 |
117 |
155 |
210 |
Sensor pocket (for 2-wire Pt500 types only), stainless steel, dimensions in mm (inch)
Stainless steel sensor pocket (for 4-wire Pt500 types only)
Stainless steel sensor pocket, dimensions in mm (inch)
Brass sensor pocket for 2-wire Pt500 types only) |
||||
---|---|---|---|---|
Length |
L1 (mm) |
47 |
92 |
127 |
L (mm) |
40 |
82 |
117 |
Sensor pocket, brass (for 2-wire Pt500 types only), dimensions in mm (inch)
