Cables for SIPLUS CMS4000
Summary of cables for SIPLUS CMS4000

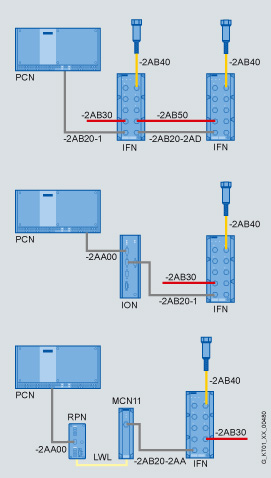

Various cables are available for connecting the different components of a CMS4000 setup:
- CABLE-IEEE1394A-66/46 (6AT8 000-2AA00-...):
for coupling ION-ION, ION-PC, PC-RPN and ION-RPN over IEEE1394 (FireWire);
CABLE-IEEE1394A-46-450 permits connection of a notebook to the system. - CABLE-IEEE1394A-8F (6AT8 000-2AB20-1...):
for coupling PC-IFN, ION-IFN and RPN-IFN over IEEE1394 (FireWire). - CABLE-IEEE1394A-8M (6AT8 000-2AB20-2AA...):
for coupling IFN-MCN11 over IEEE1394 (FireWire); - CABLE-Power (6AT8 000-2AB30-...):
for power supply to the IFN. IFN ADD must be used to pass on the power from the first IFN to further IFNs in a line topology (see below). - IFN ADD (6AT8 000-2AB50-...):
modular set to directly pass on the power supply from one IFN to an adjacent IFN. Consisting of power cable and Y connector. The Y connector is required because passing on is via the LNK socket to which the IEEE1384 bus cable to the next IFN must be connected in addition to the power cable. - CABLE-IEEE1394A-88 (6AT8 000-2AB20-2AD...):
for coupling IFN-IFN over IEEE1394 (FireWire). - CABLE-IO (6AT8 000-2AB40-...):
for connection of sensor system to IFN.
Mounting set
Mounting sets are available for IFN and MCN11. They contain mounting brackets for wall mounting.
Coping set
The coping set contains a set of caps for closing unused IFN sockets.
