SIPLUS CMS1000 Bearing Guard and Sensor are connected via the sensor cable. For connection of the Sensor, the cable is provided with an M12 connector which fits on the sensor.
|
Pin |
Assignment |
Core color |
|---|---|---|
|
1 |
VCC_S |
Brown |
|
2 |
GND_S |
White |
|
3 |
VIB- |
Blue |
|
4 |
VIB+ |
Black |
|
Shield |
Knurled nut |

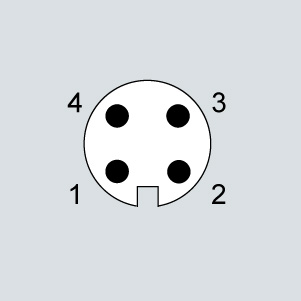

Connection assignment of M12 plug
Adapters are available for the connection to motors:
- M6/M6 adapter:
for motors with a bearing monitoring connection with an M6 thread - M6/M8 adapter:
for motors with a bearing monitoring connection with an M8 thread - M6/SPM adapter:
for IEC squirrel-cage motors with option for bearing monitoring Q01/G50. To check the bearing vibration, a measuring nipple for SPM shock-pulse measurement is attached here.
