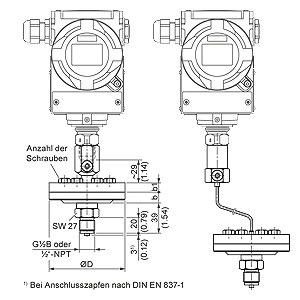

Diaphragm seal, screwed gland with inside diaphragm, for gauge and absolute pressure, direct and attached directly to the transmitter with with capillaries, measurements in mm (Inch)
|
Range |
D |
L |
b1 |
Number of screws |
|---|---|---|---|---|
|
mm (inch) |
mm (inch) |
mm (inch) |
||
|
up to 100 bar |
98 |
14 |
16 |
6 |
|
up to 250 bar |
98 |
14 |
20 |
12 |
Diaphragm seal, screwed gland with inside diaphragm, for differential pressure, direct and attached directly to the transmitter with with capillaries, measurements in mm (Inch)
|
Nominal diameter |
Nominal pressure |
D |
d4 |
k |
M |
Number of holes |
L |
b1 |
|---|---|---|---|---|---|---|---|---|
|
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
||||
|
DN 25 |
PN 10 ... 40 |
115 |
68 |
85 |
M12 |
4 |
26 |
12 |
|
1 inch |
150 lb/sq.in |
108 |
50,8 |
79,2 |
M12 |
4 |
22 |
12 |
|
1 inch |
300 lb/sq.in |
124 |
50,8 |
88,9 |
M16 |
4 |
22 |
12 |
