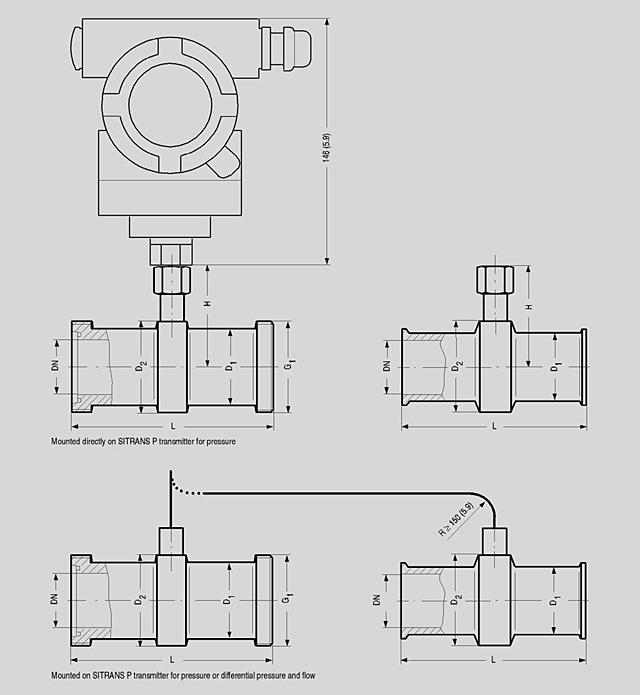

Connection to DIN 11851 with screw necks
|
DN |
O D1 |
O D2 |
H |
L |
G1 |
|---|---|---|---|---|---|
|
25 |
38 |
52 |
68 |
128 |
Rd 52x1/6 |
|
40 |
55 |
65 |
74.5 |
160 |
Rd 65x1/6 |
|
50 |
68 |
78 |
81 |
170 |
Rd 78x1/6 |
|
65 |
85 |
95 |
89.5 |
182 |
Rd 95x1/6 |
|
80 |
110 |
110 |
97 |
182 |
Rd 110x1/4 |
|
100 |
130 |
130 |
107 |
182 |
Rd 110x1/4 |
Clamp connection for pipes to BS 4825/3 and o.D. tube
|
d |
O D1 |
O D2 |
H |
L |
D |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
mm |
(inch) |
mm |
(inch) |
mm |
(inch) |
mm |
(inch) |
mm |
(inch) |
mm |
(inch) |
|
22.2 |
(1) |
38 |
(1.5) |
50 |
(1.97) |
67 |
(2.64) |
114 |
(4.49) |
50.5 |
(1.98) |
|
34.9 |
(1 ) |
43 |
(1.69) |
65 |
(2.56) |
74.5 |
(2.93) |
146 |
(5.75) |
50.5 |
(1.98) |
|
47.6 |
(2) |
56 |
(2.2) |
75 |
(2.95) |
79.5 |
(3.13) |
156 |
(6.14) |
64 |
(2.52) |
|
60.3 |
(2 ) |
68 |
(2.68) |
77 |
(3.03) |
80.5 |
(3.17) |
156 |
(6.14) |
77.5 |
(3.05) |
|
73.0 |
(3) |
82 |
(3.23) |
91 |
(3.58) |
87.5 |
(3.44 |
156 |
(6.14) |
91 |
(3.58) |
Quick-release clamp-on seal, dimensions in mm (inch)
