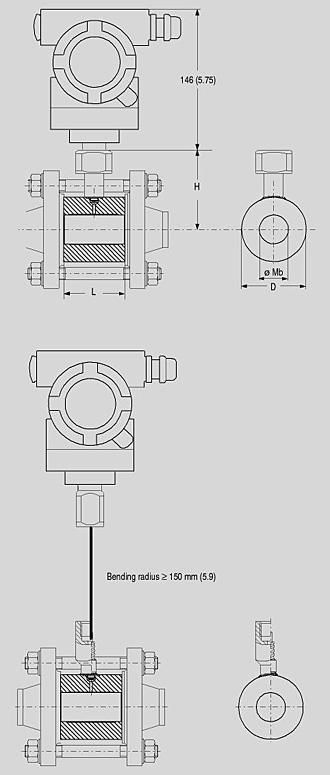

Clamp-on seal for flange-mounting, connected to SITRANS P pressure transmitter, dimensions in mm (inch)
Connection to EN 1092-1
|
DN |
PN |
D |
Mb |
L |
H |
|---|---|---|---|---|---|
|
mm (inch) |
bar |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
|
25 |
6 … 100 |
63 |
28,5 |
60 |
78,5 |
|
40 |
6 … 100 |
85 |
43 |
60 |
89,5 |
|
50 |
6 … 100 |
95 |
54,5 |
60 |
92,5 |
|
80 |
6 … 100 |
130 |
82,5 |
60 |
112 |
|
100 |
6 … 100 |
150 |
107 |
60 |
122 |
Connection to ASME B16.5
|
DN |
Class |
D |
Mb |
L |
H |
|---|---|---|---|---|---|
|
(inch) |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
|
|
(inch) |
(inch) |
(inch) |
(inch) |
||
|
1 |
150 … 2500 |
63 |
28,5 |
60 |
78,5 |
|
(2.48) |
(1.12) |
(2.36) |
(3.1) |
||
|
1 |
150 … 2500 |
85 |
43 |
60 |
86 |
|
(3.35) |
(1.69) |
(2.36) |
(3.4) |
||
|
2 |
150 … 2500 |
95 |
54,5 |
60 |
94,5 |
|
(3.74) |
(2.15) |
(2.36) |
(3.72) |
||
|
3 |
150 … 2500 |
130 |
82,5 |
60 |
112 |
|
(5.12) |
(3.25) |
(2.36) |
(4.4) |
||
|
4 |
150 … 2500 |
150 |
107 |
60 |
122 |
|
(5.9) |
(4.21) |
(2.36) |
(4.8) |
