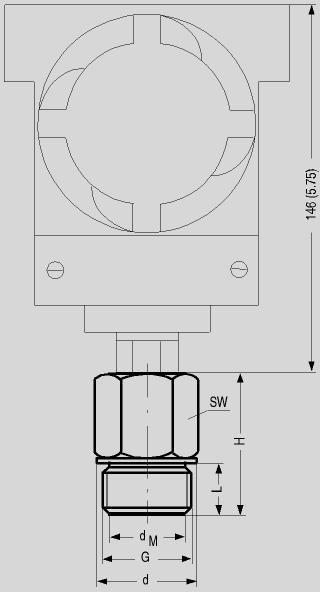

Miniature diaphragm seal, dimensions in mm (inch)
|
G |
O dM |
SW |
O d |
L |
H |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
|
mm (inch) |
(inch) |
mm (inch) |
(inch) |
mm (inch) |
(inch) |
mm (inch) |
(inch) |
mm (inch) |
(inch) |
|
|
G1B |
25 |
(0.98) |
41 |
(1.61) |
39 |
(1.53) |
28 |
(1.1) |
56 |
(2.21) |
|
G1 B |
40 |
(1.57) |
55 |
(2.17) |
60 |
(2.36) |
30 |
(1.18) |
50 |
(1.97) |
|
G2B |
50 |
(1.97) |
60 |
(2.36) |
70 |
(2.76) |
30 |
(1.18) |
63 |
(2.48) |
dM: Effective diaphragm diameter
