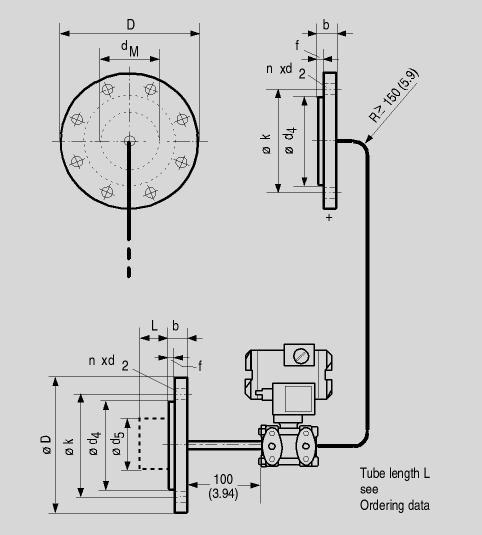

Diaphragm seals of flange design with flexible capillary, rigid connection, for connection to a SITRANS P pressure transmitter for differential pressure, dimensions in mm (inch)
Connection to EN 1092-1
|
Nominal diameter |
Nominal pressure |
L |
D |
d2 |
d4 |
d5 |
dM |
j |
k |
n |
|---|---|---|---|---|---|---|---|---|---|---|
|
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
|||
|
DN 80 |
PN 40 |
24 |
200 |
18 |
138 |
76 |
89 |
2 |
160 |
8 |
|
DN 100 |
PN 16 |
20 |
200 |
18 |
158 |
94 |
89 |
2 |
180 |
8 |
|
PN 40 |
24 |
235 |
22 |
162 |
94 |
89 |
2 |
190 |
8 |
Connection to ASME B16.5
|
Nominal diameter |
Nominal pressure |
L |
D |
d2 |
d4 |
d5 |
dM |
j |
k |
n |
|---|---|---|---|---|---|---|---|---|---|---|
|
lb/sq.in. |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
||
|
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
|||
|
3 inch |
150 |
24,3 |
190 |
20 |
127 |
76 |
89 |
2 |
152,5 |
4 |
|
(0.96) |
(7.48) |
(0.79) |
(5) |
(3) |
(3.50) |
(0.08) |
(6) |
|||
|
300 |
29 |
210 |
22 |
127 |
76 |
89 |
2 |
168,5 |
8 |
|
|
(1.14) |
(8.27) |
(0.87) |
(5) |
(3) |
(3.50) |
(0.08) |
(6.63) |
|||
|
4 inch |
150 |
24,3 |
230 |
20 |
158 |
94 |
89 |
2 |
190,5 |
4 |
|
(0.96) |
(9.06) |
(0.79) |
(6.22) |
(3.69) |
(3.50) |
(0.08) |
(7) |
|||
|
300 |
32,2 |
255 |
22 |
158 |
94 |
89 |
2 |
200 |
8 |
|
|
(1.26) |
(10.04) |
(0.87) |
(6.22) |
(3.69) |
(3.50) |
(0.08) |
(7.87) |
d: Inside diameter of gasket according to EN 1092-1 / ASME B16.5
dM: Effective diaphragm diameter
