Key features of the SIMATIC MV420:
- Code reading (refer to "Overview" and "Range of application")
- Formatting of read results for further use and/or comparison
- Comparing the read result with a preset value
- Specification of a comparison string via one of the serial ports (PROFINET (ASM and onboard), PROFIBUS (ASM), RS232)
- Comparison of the formatted read results with the comparison string
The functions can be used individually or they can be combined.
The SIMATIC MV420 reads the following codes:
- 1D codes (barcodes):
- Int. 2/5 (no checksum)
- Int. 2/5+CS (checksum included)
- Code 128
- Code 39 (no checksum)
- Code 39+CS (checksum included)
- EAN 13
- EAN 8
- UPC-A
- UPC-E
- UPC Suppl.
- GS1 Databar 14
- GS1 Databar Stacked
- GS1 Databar Limited
- GS1 Databar Expanded
- 2D codes:
- DMC
- PDF417
- QR
- Vericode
The SIMATIC MV420 reads the codes found on a wide variety of components and surfaces, including:
- Paper or plastic labels
- Plastic parts
- Circuit boards
- Metallic objects
The SIMATIC MV420 reads codes of a wide variety of marking types, such as:
- Printed
- Dot peened
- Laser
- Stamped
- Bored

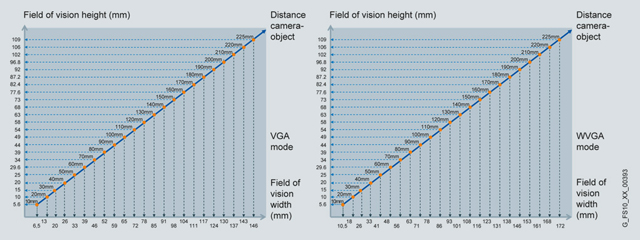

SIMATIC MV420 field of view dimensions
More information is available in the accompanying manual.
