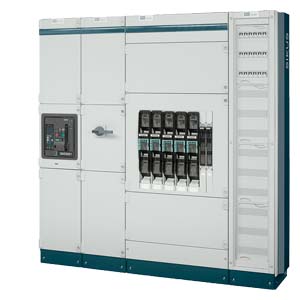

SIKUS 1600 is a low-voltage power distribution board in side-by-side cabinet design for indoor applications, optionally for wall or free-standing installation. The SIKUS 1600 already complies with the requirements of standard IEC 61439-1/2. The design has been tested and certified.
System
SIKUS 1600 is based on the modular building block principle. Thanks to the use of requirements-based, standardized and series-produced assembly kits and the numerous combination possibilities, all demands in connection with low-voltage power distribution can be optimally met.
Through expansion with 8GK distribution board assembly kits or mounting plates, SIKUS 1600 also offers extensive solutions as a distribution board and in control engineering.
A catalog, manual and the SIMARIS Configuration Basic software are available for reliable and quick configuration.
Switchgear engineers must observe the manufacturer's construction and mounting instructions. The low-voltage switchboard must be configured and tested by the switchgear engineer in accordance with IEC 61439-1/2.
Racks
The rack is constructed from height, width and depth profiles. It is the supporting structure for all built-in and surface-mounted components. Use of Sendzimir-galvanized frame profiles and self-tapping screws creates a mechanically highly stable construction with safe grounding of the built-in components.
Enclosures
The enclosure parts enable versions in degrees of protection IP30, IP40 or IP55. The powder-coated enclosure parts are finished in RAL 7035. Panel-high doors come as standard with espagnolette and 3 mm double-bit key or optionally with twist lever catches with or without a lock.
Busbar systems
The SIKUS 1600 main busbar system offers a practical grading of rated currents up to 1600 A, coordinated with the rated currents and rated short-circuit currents of standard transformers.
Form of internal partition
Internal partition form 1 or 2 is possible depending on the requirements.
Assembly kits
A service-proven and coordinated range of assembly kits is available for 3WL, 3VL, 3NJ4 switching and protection devices and for modular installation devices. Depth-adjustable modular and panel-high mounting plates round off the assembly kit range.
