8GK9 910-0KK31

Supports for front cover for unequipped panels

Material: plastic

Versions

• Long version

8GK9 910-0KK31

• Short version

8GK9 910-0KK24

8GK9 910-1KK10

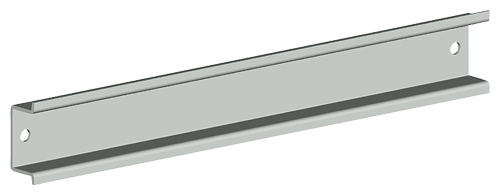

15 mm standard mounting rail

Versions

• Width 250 mm

8GK9 910-1KK10

• Width 500 mm

8GK9 910-1KK20

• Width 750 mm

8GK9 910-1KK30

• Width 1000 mm

8GK9 910-1KK40

• Width 1250 mm

8GK9 910-1KK50

8GK9 910-1KK83

8GK9 910-1KK84

8GK9 910-1KK85

Standard mounting rail holders

• For standard mounting rail, 15 mm and supports
• Long version
• Comprising 1 left and 1 right holder
• 1 set = 20 holders, 10 left, 10 right

Versions

• For 1 standard mounting rail

8GK9 910-1KK81

• For 2 standard mounting rails

8GK9 910-1KK83

• For 3 standard mounting rails

8GK9 910-1KK84

• For 4 standard mounting rails

8GK9 910-1KK85

8GK4 853-8KK01

Spare stays, for older floor-mounted distribution boards

• To mount the assembly kits in unequipped distribution boards, two longitudinal stays are required for each assembly kit width
• Height 1800 mm, depth 250/320 mm
• 1 set = 2 stays

8GK4 853-8KK01

Note

These stays cannot be used with the new 8GK4 853-8KK01 floor-mounted distribution boards.
