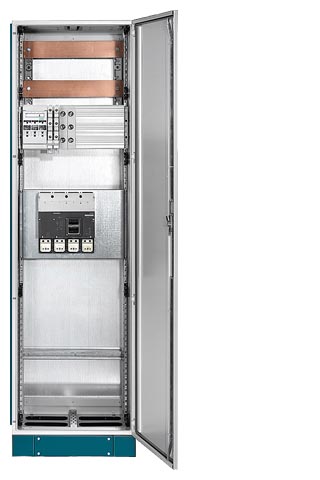

The ALPHA AS modular distribution board is ideal for all applications where busbar systems need to be fed through several butt-mounted floor-mounted cabinets, or in floor-mounted cabinets that require a greater enclosure depth (e.g. in administrative, non-residential, commercial and industrial buildings). It complements the Siemens floor-mounted distribution board range with a mounting depth of 400 mm.
The distribution board and its components are of modular design.
ALPHA AS modular distribution boards are designed for use with ALPHA DIN assembly kits.
The modular distribution boards can be supplied in safety class 1 (protective conductor connection). Used in conjunction with the correct flanges, they can achieve degree of protection IP55.
With just a few standard components, it is possible to achieve a wide range of project-related mounting and equipping options.
Suitable for installation of 40-mm, 60-mm and 185-mm busbar systems with dimensions of up to 30 mm 10 mm.
The modular design of the board enables easy planning, configuration, calculation, ordering and mounting.
Assembly kits which only require a one-size screwdriver for assembly are available for all mountable switching devices and modular installation devices.
