The SCALANCE X-200 Industrial Ethernet switches permit cost-effective configuration of Industrial Ethernet line, star or ring topologies with switching functionality for networks in which high availability or remote diagnostics options are required. The devices with IP30 degree of protection have been designed for use in the control cabinet. The SCALANCE X208PRO, is designed to the IP65 degree of protection for installation outside the control cabinet. The SCALANCE X204-2TS (TS = Transportation Systems) is suitable for use in railway applications due to its specification according to EN 50155.
Product versions
- Switches with electrical and optical portsfor glass multimode FOC up to 5 km:
- SCALANCE X204-2;
for constructing optical line or ring topologies with four electrical ports and two optical ports - SCALANCE X204-2TS (degree of protection IP20);
for setting up optical line or ring topologies with four electrical ports and two optical ports especially for railway applications (EN 50155) with extended temperature range - SCALANCE X206-1;
for setting up star topologies with 6 electrical ports and 1 optical port,
line or ring topologies with electrical and optical transmission paths - SCALANCE X212-2;
for constructing optical line or ring topologies with 12 electrical ports and two optical ports
- SCALANCE X204-2;
- Switches with electrical and optical portsfor glass single mode FOC up to 26 km:
- SCALANCE X204-2LD;
for constructing optical line or ring topologies with 4 electrical ports and 2 optical ports - SCALANCE X206-1LD;
for constructing star topologies with 6 electrical ports and 1 optical port,
line or ring topologies with electrical and optical transmission paths - SCALANCE X212-2LD;
for constructing optical line or ring topologies with 12 electrical ports and 2 optical ports
- SCALANCE X204-2LD;
- Switches with electrical ports for configuring electrical Industrial Ethernet line, star or ring topologies:
- SCALANCE X208;
with 8 electrical ports for mounting in the control cabinet - SCALANCE X208PRO (IP65 degree of protection);
with 8 electrical ports especially for use outside the control cabinet (M12 connection system) - SCALANCE X216;
with 16 electrical ports for mounting in the control cabinet - SCALANCE X224;
with 24 electrical ports for mounting in the control cabinet
- SCALANCE X208;
Features:
- The RJ45 ports are industry-standard and feature additional retaining collars (except for SCALANCE X208PRO), for connection to the IE FC RJ45 Plug 180
- The eight PROFINET-compliant M12 ports of the SCALANCE X208PRO are designed with IP65 degree of protection for connection to the IE M12 Plug PRO or the pre-assembled IE M12 connecting cable
- The SCALANCE X208PRO can be mounted on a DIN rail or S7-300 rail or direct on the equipment or machine;
the status information can be read off regardless of the mounting position thanks to the angled LED strip. - Power can also be supplied to the SCALANCE X208PRO from outside the control cabinet from the PS791-1PRO power supply module at 230 V AC.

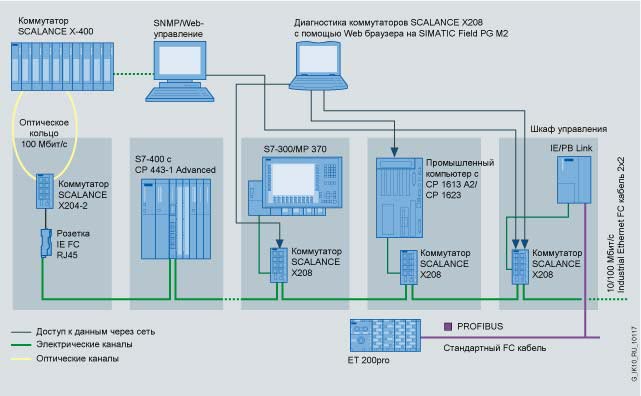

Diagnostics access over SNMP and Web browser with SCALANCE X208
