Grounding
The use of self-tapping screws for the 8MC and 8MF cubicles means that it is not necessary to provide separate grounding of the enclosure parts or other elements screwed to the frame.

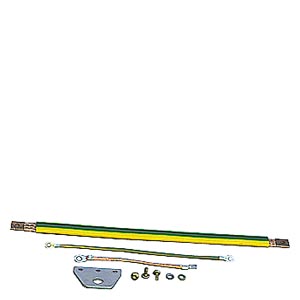

Grounding cables are only required for the doors and are already fitted at the factory. Other materials required for grounding:
- Grounding wrist strap
- Grounding cable 6 mm2
- Grounding bar, copper 30 x 5 mm
- Grounding bar, copper 30 x 10 mm
Shielding
- Shielding bars
- Serrated (toothed) bars
- Fixing plates
- Lamp plate
- Heater plate
- Thermostat plate
- Door position switch plate
Serrated (toothed) bars
Lamp plate
Heater plate
Thermostat plate
Door position switch plate
