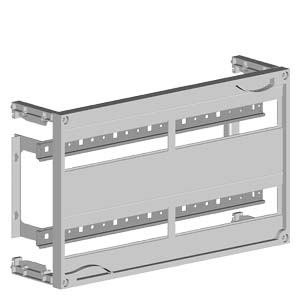

- Assembly kits for individual and project-related assembly, comprising: equipment racks, front cover for unequipped panels including supports, screws and mounting accessories
- Assembly kit dimensions (in mm): height: 150, 300, 450, 600, width: 250, 500, 750. panel-size grid dimensions: H W: 150 250
- Front cover for unequipped panels can be sealed as a standard and facilitate a fast and reliable fixation to the supports thanks to their quick-acting locking technique.
Note:
For mounting the assembly kits into the unequipped distribution boards, 2 longitudinal stays per assembly kit width are required. These longitudinal stays must be ordered separately.
The assembly kits with a width of 250 mm are delivered with 7.5 mm standard mounting rails.
The assembly kits with a width of 500 mm/750 mm are delivered with 15 mm standard mounting rails.
