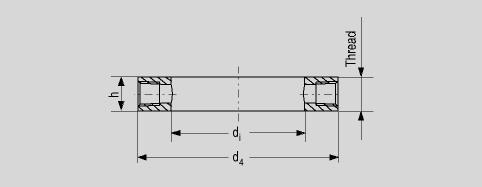

Flushing ring, dimension drawing
Connection to EN 1092-1
|
DN |
PN |
d4 |
di |
h |
Weight |
|---|---|---|---|---|---|
|
mm (inch) |
bar |
mm (inch) |
mm (inch) |
mm (inch) |
kg |
|
50 |
16 … 100 |
102 |
62 |
30 |
1,10 |
|
80 |
16 … 100 |
138 |
92 |
30 |
1,90 |
|
100 |
16 … 100 |
162 |
92 |
30 |
3,15 |
|
125 |
16 … 100 |
188 |
126 |
30 |
3,50 |
Connection to ASME B 16.5
|
DN |
Class |
d4 |
di |
h |
Weight |
||||
|---|---|---|---|---|---|---|---|---|---|
|
inch |
mm (inch) |
(inch) |
mm (inch) |
(inch) |
mm (inch) |
(inch) |
kg |
(lb) |
|
|
2 |
150 … 600 |
92 |
(3.62) |
62 |
(2.44) |
30 |
(1.18) |
0,60 |
(1.32) |
|
3 |
150 … 600 |
127 |
(5) |
92 |
(3.62) |
30 |
(1.18) |
1,05 |
(2.31) |
|
4 |
150 … 600 |
157 |
(6.18) |
92 |
(3.62) |
30 |
(1.18) |
2,85 |
(6.28) |
|
5 |
150 … 600 |
185,5 |
(7.3) |
126 |
(4.96) |
30 |
(1.18) |
3,30 |
(7.28) |
