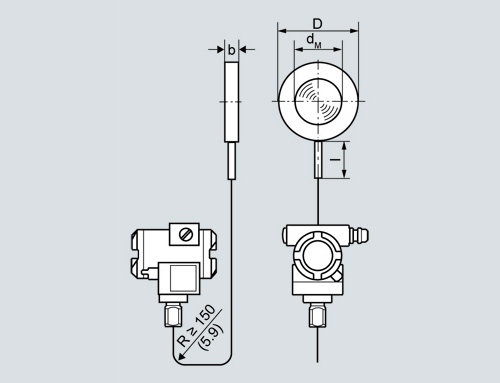

Diaphragm seals of sandwich design with flexible capillary for connection to SITRANS P pressure transmitters for pressure, dimensions in mm (inch)
Connection to EN 1092-1
|
Nominal diameter |
Nominal pressure |
L |
D |
dM |
l |
|---|---|---|---|---|---|
|
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
||
|
DN 50 |
PN 16 ... PN 100 |
20 |
102 |
59 |
100 |
|
DN 80 |
20 |
138 |
89 |
100 |
|
|
DN 100 |
20 |
158 |
89 |
100 |
|
|
DN 125 |
22 |
188 |
124 |
100 |
Connection to ASME B16.5
|
Nominal diameter |
Nominal pressure |
L |
D |
dM |
I |
|---|---|---|---|---|---|
|
lb/sq.in. |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
|
|
(inch) |
(inch) |
(inch) |
(inch) |
||
|
2 inch |
150 … 2500 |
20 |
100 |
59 |
100 |
|
(0.79) |
(3.94) |
(2.32) |
(3.94) |
||
|
3 inch |
20 |
134 |
89 |
100 |
|
|
(0.79) |
(5.28) |
(2.32) |
(3.94) |
||
|
4 inch |
20 |
158 |
89 |
100 |
|
|
(0.79) |
(6.22) |
(2.32) |
(3.94) |
||
|
5 inch |
22 |
186 |
124 |
100 |
|
|
(0.87) |
(7.32) |
(4.88) |
(3.94) |
d: Inside diameter of gasket according to EN 1092-1 / ASME B16.5
dM: Effective diaphragm diameter

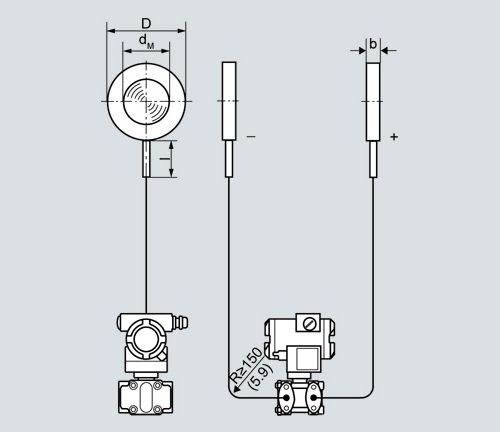

Diaphragm seals of sandwich design (without flange) with flexible capillary for connection to SITRANS P pressure transmitters for absolute pressure or differential pressure and flow, dimensions in mm (inch)
Connection to EN 1092-1
|
Nominal diameter |
Nominal pressure |
L |
D |
dM |
l |
|---|---|---|---|---|---|
|
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
||
|
DN 50 |
PN 16 ... PN 100 |
20 |
102 |
59 |
100 |
|
DN 80 |
20 |
138 |
89 |
100 |
|
|
DN 100 |
20 |
158 |
89 |
100 |
|
|
DN 125 |
22 |
188 |
124 |
100 |
Connection to ASME B16.5
|
Nominal diameter |
Nominal pressure |
L |
D |
dM |
I |
|---|---|---|---|---|---|
|
lb/sq.in. |
mm (inch) |
mm (inch) |
mm (inch) |
mm (inch) |
|
|
(inch) |
(inch) |
(inch) |
(inch) |
||
|
2 inch |
150 … 2500 |
20 |
100 |
59 |
100 |
|
(0.79) |
(3.94) |
(2.32) |
(3.94) |
||
|
3 inch |
20 |
134 |
89 |
100 |
|
|
(0.79) |
(5.28) |
(2.32) |
(3.94) |
||
|
4 inch |
20 |
158 |
89 |
100 |
|
|
(0.79) |
(6.22) |
(2.32) |
(3.94) |
||
|
5 inch |
22 |
186 |
124 |
100 |
|
|
(0.87) |
(7.32) |
(4.88) |
(3.94) |
d: Inside diameter of gasket according to EN 1092-1 / ASME B16.5
dM: Effective diaphragm diameter
