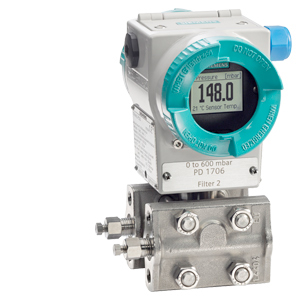

Input

Measured variable

Differential pressure and flow

Span (infinitely adjustable)

Span (min. ... max.)

Maximum operating pressure
(static pressure)

1.25 ... 250 mbar
(0.5 ... 100 inH₂O)

160 bar (2320 psi)

6.25 ... 1250 mbar
(2.5 ... 500 inH₂O)

Lower measuring limit

• Measuring cell with silicone oil filling

-100 % of max. span and/or 30 mbar a (0.44 psi a)

Upper measuring limit

100 % of max. span

Start of scale

Between measuring limits (infinitely adjustable)

Output

Output signal

4 ... 20 mA

• Lower limit (
  infinitely adjustable)

3.55 mA, factory preset to 3.8 mA

• Upper limit
  (infinitely adjustable)

23 mA, factory preset to 20.5 mA

• Ripple
  (without HART)

I_pp 0.4 % of max. output current

• adjustable damping

0... 100 s in steps of 0.1 s, factory-set to 2 s

• current transmitter

3.55 ... 23 mA

• Failure signal

adjustable within limits:

• Bottom: 3.55 … 3.7 mA, factory set to 3.6 mA
• Top: 21.0 … 23 mA, factory set to 22.8 mA

Load

• Without HART communication

R _B (U_H - 10.5 V)/0.023 A in ,
U_H : Power supply in V

• With HART communication

• HART-Communicator

R _B = 230 ... 1100

• HART modem

R _B = 230 ... 500

Characteristic curve

Linearly rising, linearly falling, square rooted characteristic rising, bidirectional square rooted characteristic and user-specific

Measuring accuracy

Reference conditions (in accordance with IEC 60770-1)

• Rising characteristic curve
• Start of scale 0 bar
• Stainless steel seal diaphragm
• Measuring cell with silicone oil filling
• Room temperature (25 °C (77 °F))

Error in measurement at limit setting incl. hysteresis and reproducibility
(r: Span ratio (r = max. span / set span))

Linear characteristic

• r 10

0,03 %

• r > 10

(0.003 x r) %

Square-rooted characteristic

• Flow > 50 %

• r   10

0,03 %

• r > 10

(0.003 x r) %

• Flow 25 % … 50 %

• r   10

0,06 %

• r > 10

(0.006 x r) %

Influence of ambient temperature per 28° C

(0.01 x r + 0.035) %/28 °C (50°F)

Influence of static pressure

• On the zero point (PKN)¹⁾

(0.007 x r) % per 70 bar

• On the span (PKS)

0.03 % per 70 bar

Total accuracy
(Total Performance)²⁾

Linear characteristic

• r + 5

 0,09 %

• 5 < r   10

 0,14 %

Square-rooted characteristic

• Flow > 50 %

• r + 5

 0,09 %

• 5 < r   10

 0,14 %

• Flow 25 % … 50 %

• r + 5

 0,18 %

• 5 < r   10

 0,28 %

Step response time T₆₃ without electrical damping

88 ms

Long-term stability

 0.05 % per 5 years

 0.08 % per 10 years

Influence of power supply

0.005 ... 1 V

Rated conditions

Mounting position

Any

Ambient conditions

• Ambient temperature
  (Note: Observe the temperature class in areas subject to explosion hazard.)

• total device

-40 ... +85 °C (-40 ... +185 °F)

• Display readable

-20 ... +85 °C (-4 ... +185 °F)

• Storage temperature

-50 ... +90 °C (-58 ... +194 °F)

Climatic class

• Condensation

Relative humidity 0 … 100 % (condensation permissible)

Degree of protection to IEC 60529

IP66/IP68 and NEMA 4X (with corresponding cable gland)

Electromagnetic Compatibility

• Emitted interference and interference immunity

Acc. to EN 61326 and NAMUR NE 21

Permissible pressures

According to 97/23/EC pressure equipment directive

Temperature of medium

• Measuring cell with silicone oil filling

-40 ... +125 °C (-40 ... +257 °F)

Design

Weight (without options)

Approx. 3.3 kg (7.3 lb)

Material of parts in contact with the medium

• Seal diaphragm

Stainless steel, mat. no. 1.4404/316L

• Process connection and sealing screw

PN 160: Stainless steel, mat. no. 1.4404/316L

• O-ring

Standard: Viton (FKM (FPM))
optional: NBR

Material of parts not in contact with media

Electronics housing

• Low copper die-cast aluminum AC-AlSi12 (Fe) or AC-AlSi 10 Mg (Fe) to EN 1706
• Lacquer on polyurethane base, optional epoxy-based primer
• Stainless steel type plate 1.4404/316L

Process connection screws

Stainless steel, mat. no. 1.4404/316L

Mounting bracket

Steel or stainless steel mat. no. 1.4301

Measuring cell filling

Silicone oil

Process connection

-18 NPT female thread and flange connection with M10 to DIN 19213 or 7/16-20 UNF mounting thread to IEC 61518

Electrical connection

• Screw terminals
• Cable entry via the following screwed glands:
  • M20 x 1.5
  • -14 NPT
  • Han 7D/Han 8D connector
  • M12 connector

Displays and controls

Keys

3 for local programming directly on transmitter

Digital display

• With or without integrated display
• Cover with or without window

Auxiliary power supply

Terminal voltage on transmitter

• DC 10.6 V ... 44 V
• With intrinsically safe operation 10.6 V ... 30 V DC

Certificates and approvals

Classification according to PED 97/23/EC

• PN 160 (MAWP 2320 psi)

For gases of fluid group 1 and liquids of fluid group 1; complies with requirements of article 3, paragraph 3 (sound engineering practice)

Explosion protection

Explosion protection for Europe (to ATEX)

• Intrinsic safety "i"

PTB 09 ATEX 2004 X

• Marking

Ex II G Ex ia/ib IIC T4

• Permissible ambient temperature

-40 … +85 °C (-40 … +185 °F)

• Connection

To certified intrinsically-safe circuits with peak values:
U_i = 30 V,I_i = 100 mA,P_i = 750 mW;R_i = 300

• Effective internal inductance

L_i = 400 µH

• Effective inner capacitance

C_i = 6 nF

• Explosion-proof "d"

BVS 09 ATEX E 027

• Marking

Ex II G Ex d IIC T4/T6

• Permissible ambient temperature

-40 ... +85 °C (-40 ... +185 °F) temperature class T4;
-40 ... +60 °C (-40 ... +140 °F) temperature class T6

• Connection

To circuits with values:U_m = DC 10.5 ... 45 V

• Dust explosion protection for zone 20

PTB 09 ATEX 2004 X

• Marking

Ex II 1 D Ex iaD 20 T 120 °C

• Permissible ambient temperature

-40 … +85 °C (-40 … +185 °F)

• Max. surface temperature

120 °C (248 °F)

• Connection

To certified intrinsically-safe circuits with peak values:
U_i = 30 V,I_i = 100 mA,P_i = 750 mW,R_i = 300

• Effective internal inductance

L_i = 400 µH

• Effective inner capacitance

C_i = 6 nF

• Dust explosion protection for zone 21/22

BVS 09 ATEX E 027

• Marking

Ex II 2 D Ex tD A21 IP68 T120 °C Ex ia D21

• Connection

To circuits with values:U_H = 10.5 ... 45 V DC;P_max = 1.2 W

• Type of protection "n" (zone 2)

PTB 09 ATEX 2004 X

• Marking

Ex II 3 G Ex nA II T4/T6
Ex II 2/3 G Ex ib/nL IIC T4/T6
Ex II 2/3 G Ex ib/ic IIC T4/T6

• "nA" connection

U_m = 45 V DC

• "nA, ic" connection

U_i = 45 V

• Effective internal inductance

L_i = 400 µH

• Effective inner capacitance

C_i = 6 nF

Explosion protection for USA

(acc. to FM)

Certificate of Compliance

No. 3033013

• Identification (XP/DIP) or (IS)

XP CL I, DIV 1, GP ABCDEFG T4 / T6
DIP CL II, III, DIV 1, GP EFG T4/T6
IS CL I, II, III, DIV 1, GP ABCDEFG T4

CL I, Zone 0, AEx ia IIC T4
CL I, Zone 1, AEx ib IIC T4

• Permissible Ambient Temperature

T_a = T4: -40 … +85 °C (-40 … +185 °F)
T_a = T6: -40 … +60 °C (-40 … +140 °F)

• Entity parameters

According to "control drawing":
A5E02189134N
U_m = 30 V, I_m= 100 mA, P_i = 750 mW, L_i = 400 µH , C_i = 6 nF

• Marking (NI/NO)

NI CL I, DIV 2, GP ABCD T4/T6
NI CL I, Zone 2, GP IIC T4/T6
S CL II, III, GPFG T4/T6
NI CL I, DIV 2, GP ABCD T4/T6, NIFW
NI CL I, Zone 2, GP IIC T4/T6, NIFW
NI CLII, III, DIV 2, GP FG T4/T6, NIFW

• Permissible Ambient Temperature

T_a = T4: -40 … +85 °C (-40 … +185 °F)
T_a = T6: -40 … +60 °C (-40 … +140 °F)

• (NI/S) parameters

According to “control drawing”:
A5E02189134N
U_m = 45 V, L_i = 400 µH, C_i = 6 nF,

Explosion protection for Canada

(according to_CCSA_US)

Certificate of Compliance

No. 2280963

• Marking (XP/DIP)

CL I, DIV 1, GP ABCD T4 /T6;
CL II, DIV 1, GP EFG T4/T6

• Permissible Ambient Temperature

T_a = T4: -40 … +85 °C (-40 … +185 °F)
T_a = T6: -40 … +60 °C (-40 … +140 °F)

• XP/DIP parameters

According to “control drawing”:
A5E02189134N
U_m = 45 V

• Marking (ia/ib)

CL I, Ex ia/Ex ib IIC, T4
CL II, III, Ex ia/Ex ib, GP EFG, T4
CL I, AEx ia/AEx ib IIC, T4
CL II, III, AEx ia/ AEx ib, GP EFG, T4

• Permissible Ambient Temperature

T_a = T4: -40 … +85 °C (-40 … +185 °F)

• Entity parameters

U_i = 30 V, I_i = 100 mA, P_i = 750 mW, R_i = 300 , L_i = 400 µH, C_i = 6 nF

• Marking (NI/n)

CL I, DIV 2, GP ABCD T4/T6
CL II, III, DIV 2, GP FG T4/T6
Ex nA IIC T4/T6
AEx nA IIC T4/T6
Ex nL IIC T4/T6
AEx nL IIC T4/T6

• Permissible Ambient Temperature

T_a = T4: -40 … +85 °C (-40 … +185 °F)
T_a = T6: -40 … +60 °C (-40 … +140 °F)

• NI/nA parameters

According to “control drawing”:
A5E02189134N
U_m = 45 V

• nL parameters

According to “control drawing”:
A5E02189134N
U_i = 45 V,I_i = 100 mA, L_i = 400 µH,C_i = 6 nF

Explosion protection for China

(acc. to NEPSI)

• Intrinsic safety "i"

GYJ111111X

• Marking

Ex ia/ib IIB/IIC T4

• Permissible ambient temperature

-40 ... +85 °C (-40 ... +185 °F)

• Connection

To certified intrinsically-safe circuits with maximum values:
U_i = 30 V I_i = 100 mA, P_i = 750 mW

• Effective internal inductance

L_i = 400 mH

• Effective inner capacitance

C_i = 6 nF

• Explosion-proof "d"

GYJ111112

• Marking

Ex dia IIC T4/T6

• Permissible ambient temperature

-40 ... +85 °C (-40 ... +185 °F) temperature class T4;
-40 ... +60 °C (-40 ... +140 °F) temperature class T6

• Connection

To circuits with values:U_m = DC 10.5 ... 45 V

• Dust explosion protection for zone 21/22

GYJ111112

• Marking

DIP A21 T_A,T120 °C IP68 D21

• Connection

To circuits with values:U_m = DC 10.5 ... 45 V

• Type of protection "n" (zone 2)

GYJ111111X

• Marking

Ex nL IIB/IIC T4/T6
Ex nA II T4/T6

• Connection

U_i = 45 V DC

• Effective internal inductance

L_i = 400 mH

• Effective inner capacitance

C_i = 6 nF

Load with connection of

• HART-Communicator

R _B= 230 ... 1100

• HART modem

R _B= 230 ... 500

Cable

2 wire shielded: 3.0 km (1.86 miles),
multiwire shielded: 1.5 km (0.93 miles)

Protocol

HART Version 6.0

PC/laptop requirements

IBM compatible, RAM > 32 MB,
hard disk > 70 MB, depending on modem type:
RS 232 interface or USB connection,
VGA graphics

Software for computer

SIMATIC PDM 6.0
