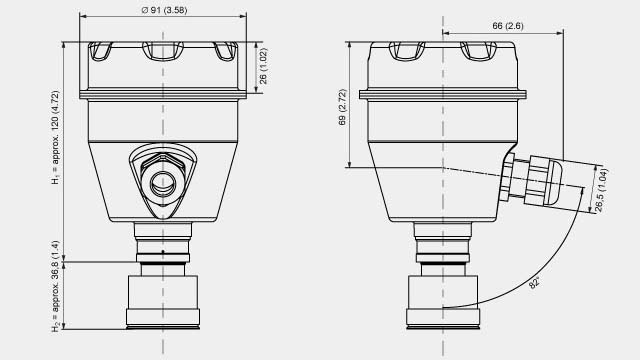

SITRANS P300 pressure transmitters for gage pressure, with PMC connection, dimensions in mm (inch)
The diagram shows a SITRANS P300 with an example of a flange. In this drawing the height is subdivided into H1 and H2.
H1 = Height of the SITRANS P300 up to a defined cross-section
H2 = Height of the flange up to this defined cross-section
Only the height H2 is indicated in the dimensions of the flanges.
 |
 |

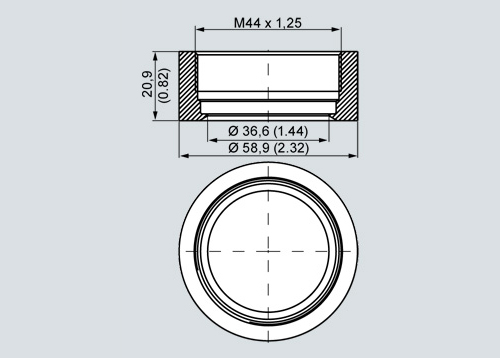

PMC Style Standard (left) and PMC Style Minibolt (right) weldable sockets, dimensions in mm (inch)
Material: Stainless steel, mat. no. 1.4404/316L
|
PMC Style standard |
||||
|---|---|---|---|---|
 |
DN |
PN |
D |
H2 |
|
40.4 mm (1.6") |
approx. 36.8 mm (1.4") |
|||
|
PMC Style minibolt |
||||
|---|---|---|---|---|
 |
DN |
PN |
D |
H2 |
|
26.3 mm (1.0") |
approx. 33.1 mm (1.3") |
|||
