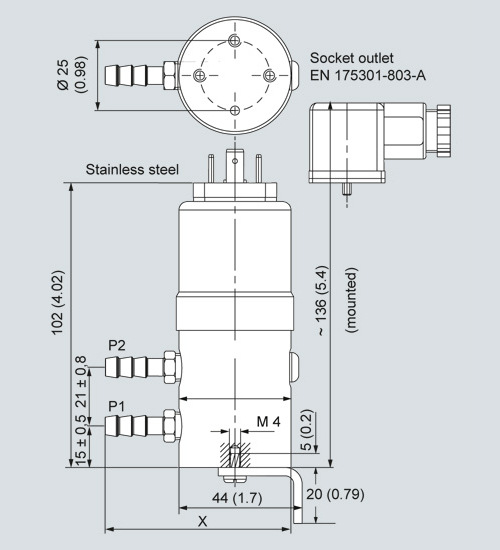

SITRANS P250 differential pressure transmitter with socket outlet to EN 175301-803-A, dimensions in mm (inch)

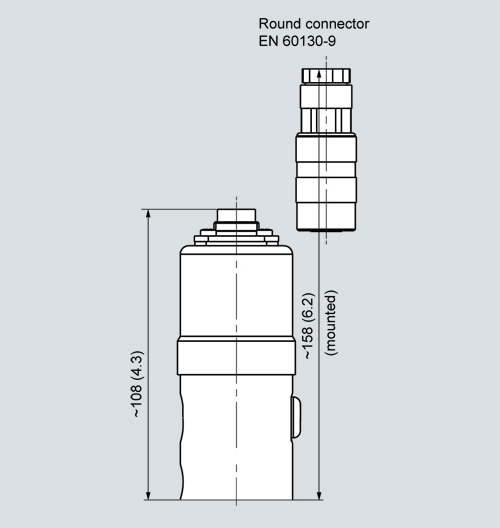

SITRANS P250 differential pressure transmitter with round connector to EN 60130-9, dimensions in mm (inch)

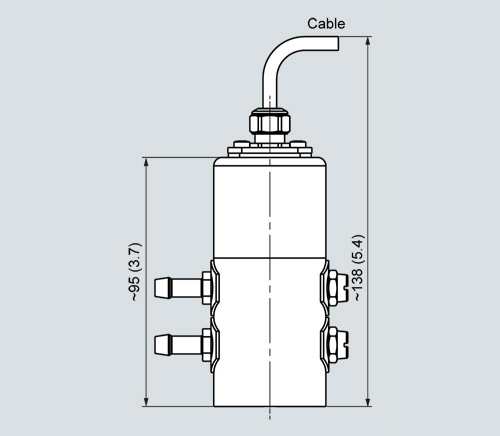

SITRANS P250 differential pressure transmitter with cable, dimensions in mm (inch)
|
Process connections |
Width across flats |
L |
X |
|||||
|---|---|---|---|---|---|---|---|---|
|
[mm] |
[inch] |
[mm] |
[inch] |
[mm] |
[inch] |
|||
 |
Hose connection for hose (CuZn nickel-plated) |
4 |
0.16 |
a = 10 |
20 |
0.79 |
61 |
2.40 |
|
6 |
0.24 |
a = 10 |
25 |
0.99 |
66 |
2.60 |
||
 |
Pipe union with screw-in nipple for outer pipe (CuZn nickel-plated) |
6 |
0.24 |
a = 10 b = 12 |
24 |
0.95 |
65 |
2.56 |
|
8 |
0.32 |
a = 12 b = 14 |
25 |
0.99 |
66 |
2.60 |
||
 |
Pipe union with screw-in nipple for outer pipe (stainless steel 1.4305/AISI 303) |
6 |
0.24 |
a = 10 b = 12 |
24 |
0.95 |
65 |
2.56 |
|
8 |
0.32 |
a = 12 b = 14 |
26 |
1 |
67 |
2.64 |
||
 |
Male thread G1/8 |
- |
- |
a = 14 |
18 |
0.71 |
59 |
2.32 |
 |
Female thread G1/8 |
- |
- |
a = 14 |
12 |
0.47 |
53 |
2 |
 |
Male thread G1/8 |
- |
- |
a = 10 |
20 |
0.79 |
61 |
2.40 |
