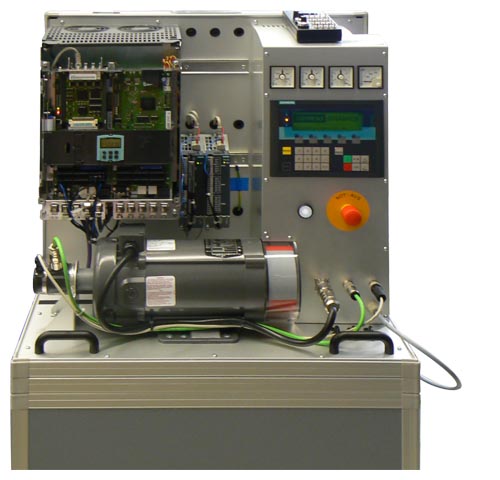

Demonstration case, opened
The SINAMICS DC MASTER demonstration model is installed ready to be connected-up in a rugged transport case and is immediately ready for operation. It comprises a DC converter 480 V 3 AC, DC 30 A, a 1 kW DC motor as well as numerous options and accessories. The case has two integrated transport wheels and a hinged handle.
Scope of delivery
The following main components are included in the SINAMICS DC MASTER demonstration case, including all of the required wiring, connection and signal cables:
- DC converter 6RA8018-6FV62-0AA0-Z; Z=G00+G10+G20+S01
G00 = Advanced CUD left
G10 = Standard CUD right
G20 = Communication Board CBE20 left
S01 = Memory card left - TM31 Terminal Module
- TM15 Terminal Module
- AOP30 Advanced Operator Panel
- Radio interference suppression filter
- Three-phase commutating reactor for the armature circuit
- Single-phase commutating reactor for the field circuit
- DC motor 1 kW, 1 750 rpm
- Pulse encoder OG 60 DN 2040 CI
- Analog tachometer GT 5.05 L/410,Vo = 10 V/1 000 rpm
- Commissioning box for SINAMICS DC MASTER to control analog and digital inputs and outputs
Free function blocks and Drive Control Chart can be used without any restrictions.
The demonstration case is also available without integrated DC motor to operate an externally mounted DC motor. (The rated converter data must be observed.)
