SIZER LD web is used when engineering SINAMICS DC MASTER. It provides supply when selecting and dimensioning the converter, associated options and accessories required for the particular application. SIZER LD web is implemented as web-based application (Internet):http://www.siemens.com/sizer-ld.
SIZER LD web supports all of the engineering stages of a converter in just one workflow:

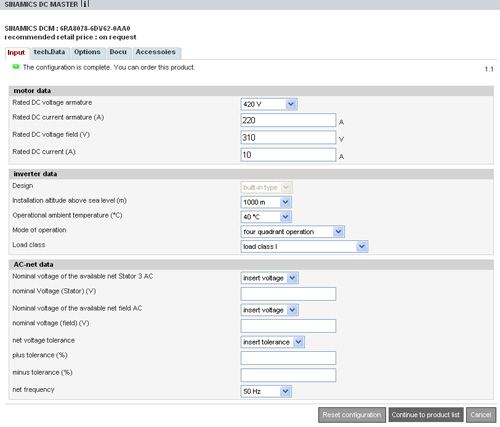

- Enter the motor data, converter data and AC line supply data
- Select the SINAMICS DC MASTER options
- Compile the required documentation and accessories
The SIZER LD web user interface is in German and English.
The engineered drive is saved in a project. From the general idea and the structure, the "Projects" and "Project items" set up in the system correspond to quotations. These are all saved on one server and can be recalled at any time.
Results of the engineering process include:
- Data sheet with the technical data of the engineered converter and where relevant, the accessories
- Dimension drawing of the converter
The results and dimension drawings can be saved or exported to technical quotation documentation.
SIZER LD web requires the following preconditions for its use:
- Internet connection
- Login for SSO (Single-Sign-On) throughhttp://www.siemens.com/sizer-ld
- SIZER LD web Version 1 has been designed for Internet Explorer 6 or higher. Mozilla Firefox, Safari (Mac OS) and Opera are also supported from Version 2 and higher.
However, in the future, SINAMICS DC MASTER will not only be able to be engineered in SIZER LD web. It is also possible to engineer the unit in the Industry Mall (https://mall.automation.siemens.com/) directly via the configurator list. Almost the whole of the Industry product catalog can be called-up in the Industry Mall - including Configurators for a wide range of products - without having to enter a Login. After logging on to the Mall, users can view the prices and add the products that have been selected into the Mall shopping cart and then enter an order.
