Силовые кабели |
MOTION CONNECT 500 |
||
|---|---|---|---|
|
Тип |
6FX500.-....-.... |
||
|
Допуски |
|||
|
Да |
||
|
UL758-CSA-C22.2-N.210.2-M90 |
||
|
Да |
||
|
Номинальное напряжение V0/V в соответствии сEN 50395 |
|||
|
600 В/1 000 В |
||
|
24 В (EN) 1 000 В (UL/CSA) |
||
|
Тестовое напряжение, rms |
|||
|
4 кВ |
||
|
2 кв |
||
|
Operating temperature |
|||
|
-20 … +80 °C |
||
|
0 … 60 °C |
||
|
Tensile load, max. |
|||
|
50 N/mm2 |
||
|
20 N/mm2 |
||
|
Smallest bending radius |
|||
|
5 Dmax |
||
|
See power cables |
||
|
Torsional stress |
Absolute 30°/m |
||
|
Bending |
100 000 |
||
|
Traversing velocity |
30 m/min |
||
|
Acceleration |
2 m/s2 |
||
|
Insulation materiall |
FCKW-/silicone-free |
||
|
Oil resistance |
EN 60811-2-1 (only mineral oil) |
||
|
Outer jacket |
PVC |
||
|
DESINA color orange RAL 2003 |
|||
|
Flame-retardant |
EN 60332-1-1 to 1-3 |
||
|

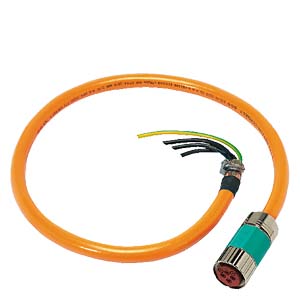

For the connection of synchronous and asynchronous motors to the Power Modules. The pre-assembled MOTION-CONNECT 500 power cables are of high quality and offer safety with problem-free functioning. |
1) The respective registration number is printed on the cable jacket (only valid for power cables).
2) The file Number is printed on the cable jacket.
Power cables MOTION-CONNECT 500withoutbrake cores for motors connected to Power Module AC/AC-devices
|
Connection method, |
Number of cores cross-section |
Connector size motor end |
Pre-assembled cable |
D max |
Cable sold by the meter 1) |
Weight |
Smallest perm. bending radius 2) |
|---|---|---|---|---|---|---|---|
|
mm2 |
Order No. |
mm |
Order No. |
kg/m |
mm |
||
|
Exposed core ends |
4 1.5 |
1 |
6FX5002 5CG01 .... |
8.4 |
6FX5008 1BB11 .... |
0.12 |
155 |
|
1.5 |
6FX5002 5CG21 .... |
||||||
|
4 2.5 |
1 |
6FX5002 5CG11 .... |
10.0 |
6FX5008 1BB21 .... |
0.21 |
180 |
|
|
1.5 |
6FX5002 5CG31 .... |
||||||
|
4 4 |
1.5 |
6FX5002 5CG41 .... |
11.4 |
6FX5008 1BB31 .... |
0.27 |
210 |
|
|
4 6 |
1.5 |
6FX5002 5CG51 .... |
13.6 |
6FX5008 1BB41 .... |
0.37 |
245 |
|
|
4 10 |
1.5 |
6FX5002 5CG61 .... |
20.0 |
6FX5008 1BB51 .... |
0.73 |
360 |
|
|
3 |
6FX5002 5CG13 .... |
||||||
|
4 16 |
3 |
6FX5002 5CG23 .... |
24.2 |
6FX5008 1BB61 .... |
1.10 |
440 |
|
|
Sold by the meter |
4 35 |
- |
- |
28.0 (1.10) |
6FX5008-1BB25-.... |
1.62 |
505 |
|
4 35 |
- |
- |
31.5 |
6FX5008-1BB35-.... |
1.93 |
570 |
|
|
4 50 |
- |
- |
38.0 |
6FX5008-1BB50-.... |
3.04 |
685 |
|
|
4 70 |
- |
- |
42.6 |
6FX5008-1BB70-.... |
3.96 |
770 |
|
|
4 95 |
- |
- |
51.7 |
6FX5008-1BB05-.... |
5.55 |
935 |
|
|
4 120 |
- |
- |
56.0 |
6FX5008-1BB12-.... |
6.69 |
1010 |
|
|
Length codes |
.... |
.... |
|||||
1) Power cables of 1.5 mm2 and 2.5 mm2 are supplied in coils or on disposable drums in lengths of 50 m, 100 m, 200 m and 500 m (164 ft, 328 ft, 656 ft, 1640 ft). Power cables of 4 mm2 can be ordered to the meter in lengths of up to 100 m (328 ft) and in fixed lengths above 100 m (328 ft) on disposable drums.
2) Valid for routing in cable carrier
Power cablesMOTION-CONNECT 500withbrake cores for motors connected to Power Module AC/AC devices
|
Connection method, |
Number of cores cross-section |
Connector size motor end |
Pre-assembled cable |
D max |
Cable sold by the meter 1) |
Weight |
Smallest perm. bending radius 2) |
|---|---|---|---|---|---|---|---|
|
mm2 |
Order No. |
mm |
Order No. |
kg/m |
mm |
||
|
Exposed core ends |
4 1.5 + 2 1.5 |
0.5 |
6FX5002 5DA30 …. |
10.8 |
6FX5008 1BA11 .... |
0.22 |
195 |
|
1 |
6FX5002 5DG01 .... |
10.8 |
6FX5008 1BA11 .... |
0.22 |
195 |
||
|
1.5 |
6FX5002 5DG21 .... |
||||||
|
4 2.5 + 2 1.5 |
1 |
6FX5002 5DG11 .... |
12.4 |
6FX5008 1BA21 .... |
0.25 |
225 |
|
|
1.5 |
6FX5002 5DG31 .... |
||||||
|
4 4 + 2 1.5 |
1.5 |
6FX5002 5DG41 .... |
14.0 |
6FX5008 1BA31 .... |
0.35 |
255 |
|
|
4 6 + 2 1.5 |
1.5 |
6FX5002 5DG51 .... |
16.1 |
6FX5008 1BA41 .... |
0.49 |
290 |
|
|
4 10 + 2 1.5 |
1.5 |
6FX5002 5DG61 .... |
21.7 |
6FX5008 1BA51 .... |
0.81 |
395 |
|
|
3 |
6FX5002 5DG13 .... |
||||||
|
4 16 + 2 1.5 |
3 |
6FX5002 5DG23 .... |
25.0 |
6FX5008 1BA61 .... |
1.12 |
450 |
|
|
4 25 + 2 1.5 |
3 |
6FX5002 5DG33 .... |
29.4 (1.16) |
6FX5008 1BA25 .... |
1.62 |
530 |
|
|
4 35 + 2 1.5 |
3 |
6FX5002 5DG43 .... |
32.6 |
6FX5008 1BA35 .... |
2.06 |
590 |
|
|
4 50 + 2 1,5 |
3 |
6FX5002 5DG53 .... |
38.0 |
6FX5008 1BA50 .... |
3.04 |
685 |
|
|
Length codes |
.... |
.... |
|||||
1) Power cables of 1.5 mm2 and 2.5 mm2 are supplied in coils or on disposable drums in lengths of 50 m, 100 m, 200 m and 500 m (164 ft, 328 ft, 656 ft, 1640 ft). Power cables of 4 mm2 can be ordered to the meter in lengths of up to 100 m (328 ft) and in fixed lengths above 100 m (328 ft) on disposable drums.
2) Valid for routing in cable carrier
