Universal dimmers
Universal dimmers are dimmers which automatically determine the load type connected to its output (resistive, inductive or capacitive) and switch over accordingly to leading-edge phase mode (for a resistive or inductive load such as incandescent lamps or LV halogen lamps with an upstream conventional transformer) or trailing-edge phase mode (for a capacitive load such as LV halogen lamps with an upstream electronic transformer).
Block diagram 1:
1-channel operation without KNX, control over conventional pushbuttons at the two inputs (E1, E2)1)

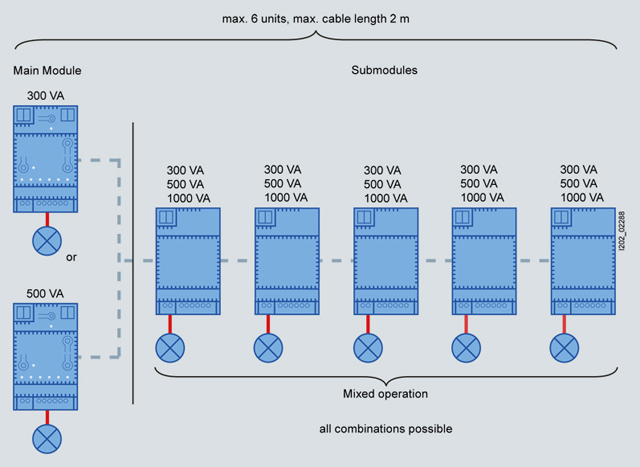

Block diagram 2:
Possible combinations of universal dimmer main modules and expansions1)
1)The block diagrams shown here are just an example of how modules can be interconnected and interfaced. Refer to the technical documentation for more detailed informationwww.siemens.de/gamma-td

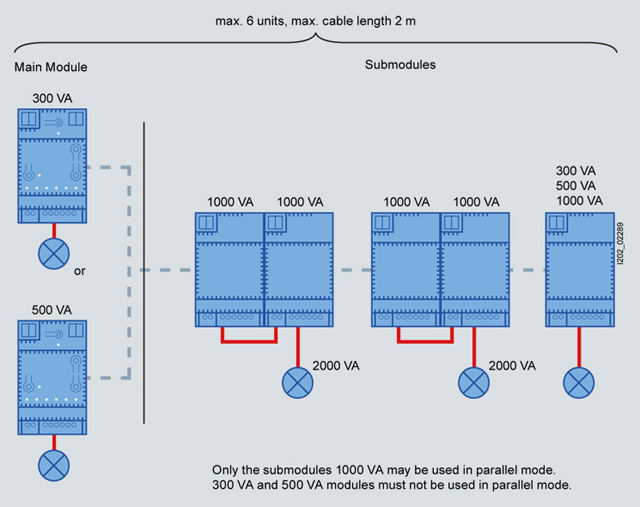

Block diagram 3:
Possible combinations of universal dimmer main modules and expansions plus performance increase1)
1)The block diagrams shown here are just an example of how modules can be interconnected and interfaced. Refer to the technical documentation for more detailed informationwww.siemens.de/gamma-td
