Com Bridge Studio Evolution

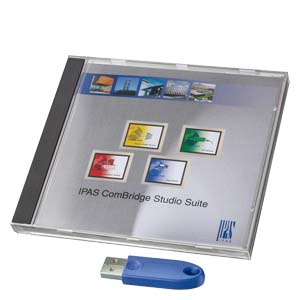

IPAS is known as one of the leading suppliers of web-based visualization. IPAS was already able to offer HTML based visualization software solutions for individual large projects, such as airports, shopping centers, administrative buildings, and other distributed locations with their ComBridge Studio Suite.
All this experience flowed into the latest development of ComBridge Studio Evolution, which now permits extremely high quantities of data, or hundreds of KNXnet/IP interfaces in a project with several hundred users to be realized. ComBridge Studio Evolution facilitates the design and configuration of very complex functions, like scenes, annual programs, graphical logic functions, and much more, in addition to the mere representation of states and operation of functions. Adobe flash technology now makes it very easy to use visualization for design-oriented elements and functions so that mapping reality can be done in a snap.

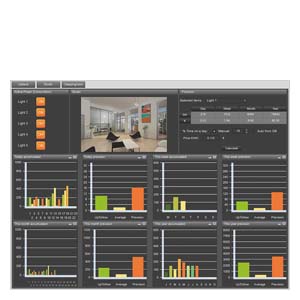

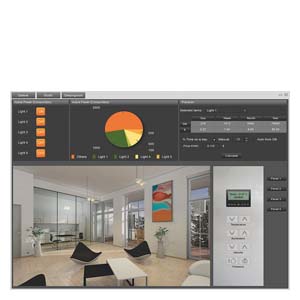

You can now also display complex database analyses with ComBridge Studio Evolution in a customized and appealing design. The Smart Metering module is a special module of ComBridge Studio Evolution. This module analyzes consumption data saved to the database. Based on this current consumption data Smart Metering module calculates the probable weekly, monthly and annual consumption so that the user is informed at any time, which costs are generated by their energy consumption over certain review periods. In addition, various periods may be compared and evaluated graphically. The consumption data can be evaluated directly by KNX counters, such as the Siemens energy counter(see Chapter "Counters").
Another great advantage is its independence from the various operating systems. ComBridge Studio Evolution is configured directly on the ComBridge Studio Evolution Server. The user interface is your standard browser in conjunction with the Adobe flash player. Flashplayer can be easily downloaded from the Internet and is available free of charge.
More information:
Order address:
IPAS GmbH
Grabenstr. 149a
47057 Duisburg, Deutschland
Telephone: +49 (0)203 / 37867-0,
Fax: +49 (0)203 / 37867-10
