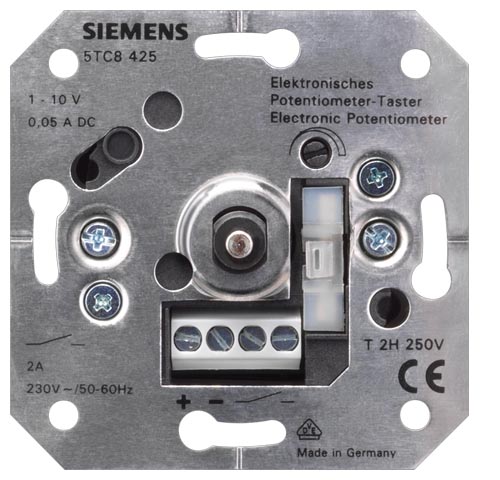

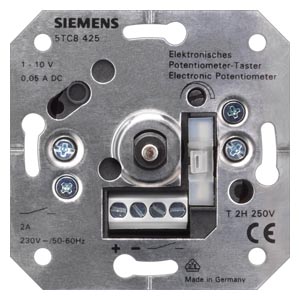

5TC8 425

Electronic potentiometers, pushbutton

• Control device for the brightness of fluorescent lamps
• Connection to electronic primary switching devices (ECG) with control input 1 to 10 V DC
• With pressure switch and rotary operation
• For claw and screw fixing
• Screw-type terminals with anti-slip terminal body for solid and finely stranded conductors
• Actuating voltage 1 to 10 V DC
• Max. control circuit: 50 mA
• Load contact: 230 V AC/2 A
• Trimming potentiometer for setting basic brightness
• Rotary potentiometer with soft notching
• VDE approved

5TC8 425

Switching capacity

depending on the remote control switch or installation contactor selected

Symbol

Top, see section

Design/i-system/Lighting controls

Design/DELTA natur/Lighting controls

Design/DELTA profil/Lighting controls

Design/DELTA style/Lighting controls

Note

Section

Technical specifications, see ...

Technical information/Dimmers/Electronic potentiometers, Pushbuttons
