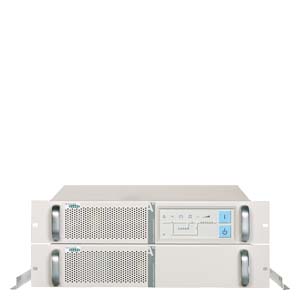

MASTERGUARD UPS

• The A-19 and EI-19 series of Masterguard offer effective online protection against all kinds of power supply disturbances
• Genuine online operating principle, i.e. complete disconnection of the load from the irregularities of the line power supply
• 19" compact modules
• Simple operation and functional indication of operating states and load stages

MASTERGUARD UPS Series A-19/EI-19

• Permanent double-converter technology evens out any irregularity in the power supply and offers totally uninterrupted protection
• Easily configurable for use in 19" cabinets thanks to battery expansions and universal slide rail units
• With a height of just 2 HU for the A-19 series and 3 HU for the EI-19 series and with power-regulated fan and functional display, these units are ideal where space is limited.
• For communication, a choice can be made between serial and USB interface and, in addition, a network connection of the UPS can be set up by means of an SNMP plug-in card for the communication slot.

Standard configuration

MASTERGUARD UPS Series A-19

• A700-19
  Output: 700 VA; integrated battery: 6 min.
• A1000-19
  Output: 1000 VA; integrated battery: 7 min.
• A2000-19
  Output: 2000 VA
• A3000-19
  Output: 3000 A

Battery pack for MASTERGUARD Series A-19

• BPA 1000-19
  for UPS A1000-19 (max. 2 BP)
• BPA 3000-19
  for UPS A2000-19 (max. 5 BP) and UPS A3000-19 (max. 5 BP)

Accessories

Slide rail unit 2 HU 330-580 mm

Slide rail unit 2 HU 575-855 mm

Standard configuration

MASTERGUARD UPS Series El-19

• EI-19
  Output: 6000 VA

Battery pack for MASTERGUARD Series EI-19

• BPEI-19

Accessories

Slide rail unit 3 HU 330-580 mm

Slide rail unit 3 HU 575-855 mm

ManageUPS SNMP adapter card

MopUPS shutdown software

• for Intel operating systems (Windows, Linux, Solaris for Intel)
• for Risc operating systems (Solaris SPARC, HPUX, AIX)
