ENG: Diaphragm seal, screwed gland, direct mounting and/or with capillary

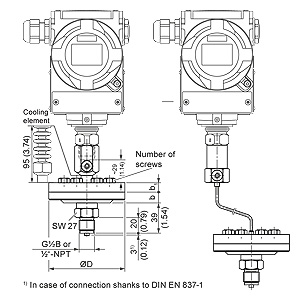

Diaphragm seal, screwed gland with inside diaphragm, for gauge and absolute pressure, direct and attached directly to the transmitter with with capillaries, measurements in mm (Inch)
Range
D
L
b1
Number of screws
mm (inch)
mm (inch)
mm (inch)
up to 100 bar
98
14
16
6
up to 250 bar
98
14
20
12
Diaphragm seal, screwed gland with inside diaphragm, for differential pressure, direct and attached directly to the transmitter with with capillaries, measurements in mm (Inch)
Nominal diameter
Nominal pressure
D
d4
k
M
Number of holes
L
b1
mm (inch)
mm (inch)
mm (inch)
mm (inch)
mm (inch)
DN 25
PN 10 ... 40
115
68
85
M12
4
26
12
1 inch
150 lb/sq.in
108
50,8
79,2
M12
4
22
12
1 inch
300 lb/sq.in
124
50,8
88,9
M16
4
22
12
