ENG: For diff. pressure, rigid con. and with capillary
Connection to EN 1092-1
Nom. diam.
Nom. press.
b
D
d2
d4
d5
dM
f
k
n
mm
mm
mm
mm
mm
mm
mm
mm
DN 80
PN 40
24
200
18
138
76
89
2
160
8
DN 100
PN 16
20
200
18
158
94
89
2
180
8
PN 40
24
235
22
162
94
89
2
190
8
Connection to ASME B16.5
Nom. diam.
Nom. press.
b
D
d2
d4
d5
dM
f
k
n
lb/sq.in.
mm
mm
mm
mm
mm
mm
mm
mm
(inch)
(inch)
(inch)
(inch)
(inch)
(inch)
(inch)
(inch)
3 inch
150
24
190
20
127
76
89
1.6
152.5
4
(0.96)
(7.48)
(0.79)
(5)
(3)
(3.50)
(0.06)
(6)
300
29
210
22
127
76
89
1.6
168.5
8
(1.14)
(8.27)
(0.87)
(5)
(3)
(3.50)
(0.06)
(6.63)
4 inch
150
24
230
20
158
94
89
1.6
190.5
4
(0.95)
(9.06)
(0.79)
(6.22)
(3.69)
(3.50)
(0.06)
(7)
300
32
255
22
158
94
89
1.6
200
8
(1.26)
(10.04)
(0.87)
(6.22)
(3.69)
(3.50)
(0.06)
(7.87)
d: Inside diameter of gasket according to EN 1092-1 / ASME B16.5
dM: Effective diaphragm diameter

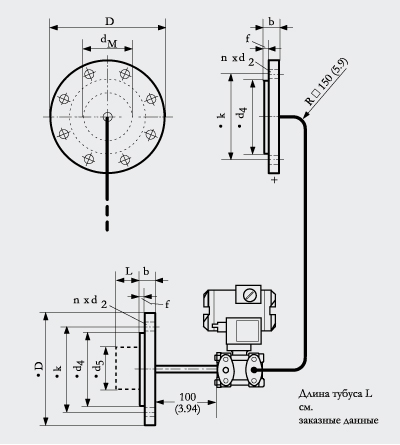

Diaphragm seals of flange design with flexible capillary, rigid connection, for connection to a SITRANS P pressure transmitter for differential pressure, dimensions in mm (inch)
