ENG: For pressure and abs. pressure, directly fitted on transmitter

Connection to EN 1092-1

Nom. diam.	Nom. press.	b	D	d₂	d₄	d₅	d_M	f	k	n
Nom. diam.	Nom. press.	mm	mm	mm	mm	mm	mm	mm	mm
DN 50	PN 40	20	165	18	102	48.3	59	2	125	4
DN 50	PN 100	28	195	26	102	48.3	59	2	145	4
DN 80	PN 40	24	200	18	138	76	89	2	160	8
DN 80	PN 100	32	230	26	138	76	89	2	180	8
DN 100	PN 16	20	220	18	158	94	89	2	180	8
DN 100	PN 40	24	235	22	162	94	89	2	190	8

Connection to ASME B16.5

Nom. diam.	Nom. press.	b	D	d₂	d₄	d₅	d_M	f	k	n
	lb/sq.in.	mm	mm	mm	mm	mm	mm	mm	mm
	lb/sq.in.	(inch)	(inch)	(inch)	(inch)	(inch)	(inch)	(inch)	(inch)
2 inch	150	20	150	20	92	48.3	59	1,6	120.5	4
	150	(0.79)	(5.91)	(0.79)	(3.62)	(1.9)	(2.32)	(0.06)	(4.74)	4
	300	22,5	165	20	92	48.3	59	1.6	127	8
	300	(0.89)	(6.5)	(0.79)	(3.62)	(1.9)	(2.32)	(0.06)	(5)	8
	600	32	165	20	92	48,3	59	6.4	127	8
	600	(1.26)	(6.5)	(0.79)	(3.62)	(1.9)	(2.32)	(0.25)	(5)	8
	1500	45	215	26	92	48,3	59	6.4	165	8
	1500	(1.77)	(8.46)	(1.02)	(3.62)	(1.9)	(2.32)	(0.25)	(6.5)	8
3 inch	150	24	190	20	127	76	89	1.6	152.5	4
	150	(0.95)	(7.48)	(0.79)	(5)	(3)	(3.50)	(0.06)	(6)	4
	300	29	210	22	127	76	89	1.6	168.5	8
	300	(1.14)	(8.27)	(0.87)	(5)	(3)	(3.50)	(0.06)	(6.63)	8
	600	38,5	210	22	127	76	89	6.4	168.5	8
	600	(1.52)	(8.27)	(0.87)	(5)	(3)	(3.50)	(0.25)	(6.63)	8
4 inch	150	24	230	20	158	94	89	1.6	190.5	8
	150	(0.95)	(9.06)	(0.79)	(6.22)	(3.69)	(3.50)	(0.06)	(7.5)	8
	300	32	255	22	158	94	89	1.6	200	8
	300	(1.26)	(10.04)	(0.79)	(6.22)	(3.69)	(3.50)	(0.06)	(7.87)	8
	400	41,5	255	26	158	94	89	6.4	200	8
	400	(1.62)	(10.04)	(1.02)	(6.22)	(3.69)	(3.50)	(0.25)	(7.87)	8

d: Inside diameter of gasket according to EN 1092-1/ASME B16.5

d_M: Effective diaphragm diameter

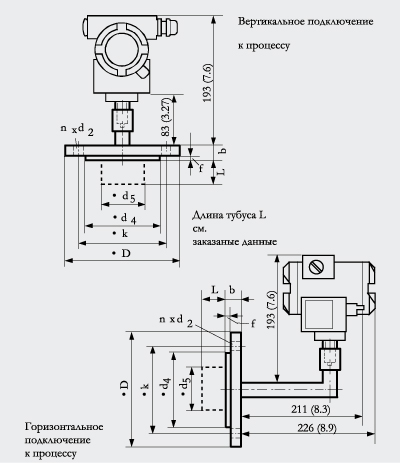

Diaphragm seals of flange design, direct connection to a SITRANS P pressure transmitter (process connection vertical (top) and horizontal (bottom)), dimensions in mm (inch)
