ENG: With flexible capillary

Connection to EN 1092-1

Nom. diam.	Nom. press.	b	D	d₂	d₄	d_M	f	k	n
DN 50	PN 40	20	165	18	102	59	2	125	4
DN 50	PN 100	28	195	26	102	59	2	145	4
DN 80	PN 40	24	200	18	138	89	2	160	8
DN 80	PN 100	32	230	26	138	89	2	180	8
DN 100	PN 16	20	220	18	158	89	2	180	8
DN 100	PN 40	24	235	22	162	89	2	190	8
DN 125	PN 16	22	250	18	188	124	2	210	8
DN 125	PN 40	26	270	26	188	124	2	220	8

Connection to ASME B16.5

Nom. diam.	Nom. press.	b	D	d₂	d₄	d_M	f	k	n
	lb/sq.in.	mm	mm	mm	mm	mm	mm	mm
	lb/sq.in.	(inch)	(inch)	(inch)	(inch)	(inch)	(inch)	(inch)
2 inch	150	20	150	20	92	59	1.6	120.5	4
	150	(0.79)	(5.80)	(0.79)	(3.62)	(2.32)	(0.06)	(4.74)	4
	300	22.5	165	20	92	59	1.6	127	8
	300	(0.89)	(6.50)	(0.79)	(3.62)	(2.32)	(0.06)	(5)	8
	600	32	165	20	92	59	1.6	127	8
	600	(1.26)	(6.50)	(0.79)	(3.62)	(2.32)	(0.06)	(5)	8
7.62 cm	150	24	190	20	127	89	1.6	152.5	4
	150	(0.96)	(7.48)	(0.79)	(5)	(3.50)	(0.06)	(6)	4
	300	29	210	22	127	89	1.6	168.5	8
	300	(1.14)	(8.27)	(0.87)	(5)	(3.50)	(0.06)	(6.63)	8
	400	38.5	210	22	127	89	6.4	168.5	8
	400	(1.52)	(8.27)	(0.87)	(5)	(3.50)	(0.25)	(6.63)	8
4 inch	150	24	230	20	158	89	1.6	190.5	4
	150	(0.95)	(9.06)	(0.79)	(6.22)	(3.50)	(0.06)	(7.5)	4
	300	32	255	22	158	89	1.6	200	8
	300	(1.26)	(10.04)	(0.87)	(6.22)	(3.50)	(0.06)	(7.87)	8
	400	41,5	255	26	158	89	6.4	200	8
	400	(1.62)	(10.04)	(1.02)	(6.22)	(3.50)	(0.25)	(7.87)	8
5 inch	150	24	255	22	186	124	2	216	4
	150	(0.94)	(10.04)	(0.87)	(7.32)	(4.88)	(0.08)	(8.50)	4
	300	35	280	22	186	124	2	235	8
	300	(1.38)	(11.02)	(0.87)	(7.32)	(4.88)	(0.08)	(9.25)	8
	400	45,5	280	26	186	124	7	235	8
	400	(1.79)	(11.02)	(1.02)	(7.32)	(4.88)	(0.28)	(9.25)	8

d: Inside diameter of gasket according to EN 1092-1 / ASME B16.5

d_M: Effective diaphragm diameter

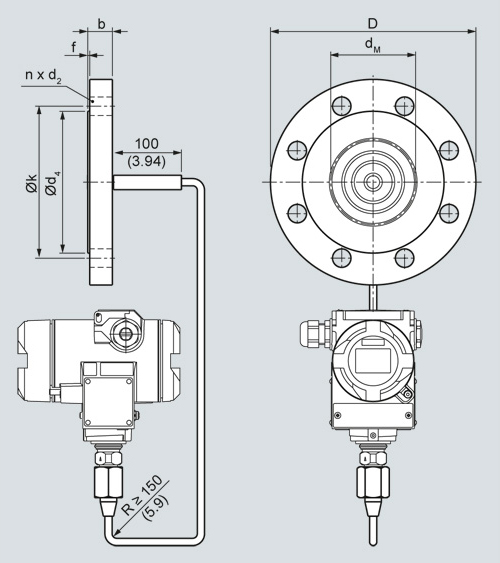

Diaphragm seals of flange design with flexible capillary for connection to SITRANS P pressure transmitters for pressure, dimensions in mm (inch)

Connection to EN 1092-1

Nom. diam.	Nom. press.	b	D	d₂	d₄	d_M	f	k	n
Nom. diam.	Nom. press.	mm	mm	mm	mm	mm	mm	mm
DN 80	PN 40	24	200	18	138	89	2	160	8
DN 80	PN 100	32	230	26	138	89	2	180	8
DN 100	PN 16	20	220	18	158	89	2	180	8
DN 100	PN 40	24	235	22	162	89	2	190	8
DN 125	PN 16	22	250	18	188	124	2	210	8
DN 125	PN 40	26	270	26	188	124	2	220	8

Connection to ASME B16.5

Nom. diam.	Nom. press.	b	D	d₂	d₄	d_M	f	k	n
	lb/sq.in.	mm	mm	mm	mm	mm	mm	mm
	lb/sq.in.	(inch)	(inch)	(inch)	(inch)	(inch)	(inch)	(inch)
3 inch	150	24	190	20	127	89	1,6	152.5	4
	150	(0.96)	(7.48)	(0.79)	(5)	(3.50)	(0.06)	(6)	4
	300	29	210	22	127	89	1.6	168.5	8
	300	(1.14)	(8.27)	(0.87)	(5)	(3.50)	(0.06)	(6.63)	8
	400	38,5	210	22	127	89	6.4	168.5	8
	400	(1.52)	(8.27)	(0.87)	(5)	(3.50)	(0.25)	(6.63)	8
4 inch	150	24	230	20	158	89	1.6	190.5	4
	150	(0.95)	(9.06)	(0.79)	(6.22)	(3.50)	(0.06)	(7.5)	4
	300	32	255	22	158	89	1.6	200	8
	300	(1.26)	(10.04)	(0.87)	(6.22)	(3.50)	(0.06)	(7.87)	8
	400	41,5	255	26	158	89	6.4	200	8
	400	(1.62)	(10.04)	(1.02)	(6.22)	(3.50)	(0.25)	(7.87)	8
5 inch	150	24	255	22	186	124	2	216	4
	150	(0.94)	(10.04)	(0.87)	(7.32)	(4.88)	(0.08)	(8.50)	4
	300	35	280	22	186	124	2	235	8
	300	(1.38)	(11.02)	(0.87)	(7.32)	(4.88)	(0.08)	(9.25)	8
	400	45,5	280	26	186	124	7	235	8
	400	(1.79)	(11.02)	(1.02)	(7.32)	(4.88)	(0.28)	(9.25)	8

d: Inside diameter of gasket according to EN 1092-1 / ASME B16.5

d_M: Effective diaphragm diameter

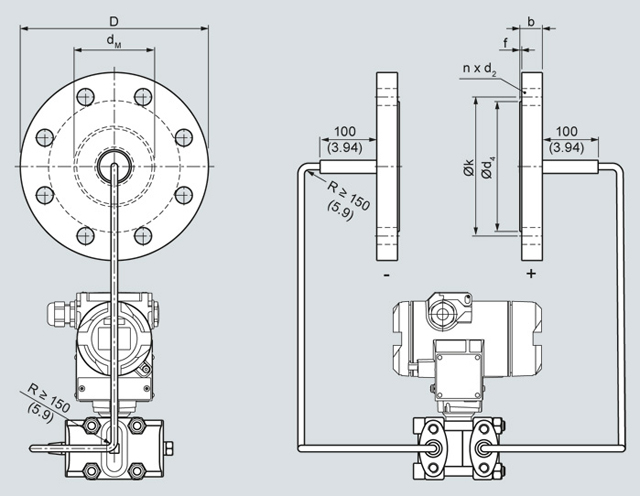

Diaphragm seals of flange design with flexible capillary for connection to SITRANS P pressure transmitters for absolute pressure or for differential pressure and flow, dimensions in mm (inch)
